Question 5 (1 point) Write the expression for torque and the maximum lining pressure in terms of T2 for the brake shown

Post by answerhappygod »

Question 5 1 Point Write The Expression For Torque And The Maximum Lining Pressure In Terms Of T2 For The Brake Shown 1
Question 5 1 Point Write The Expression For Torque And The Maximum Lining Pressure In Terms Of T2 For The Brake Shown 1 (56.9 KiB) Viewed 37 times

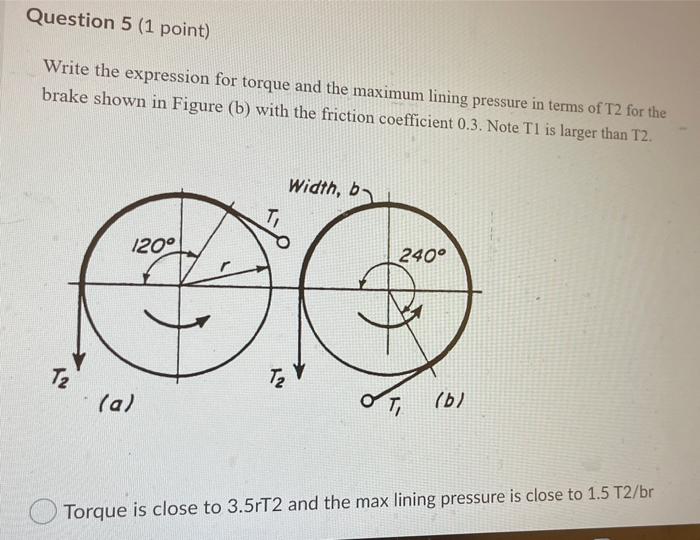

Question 5 (1 point) Write the expression for torque and the maximum lining pressure in terms of T2 for the brake shown in Figure (b) with the friction coefficient 0.3. Note T1 is larger than T2. Width, b- 120° 240° 7₂ (a) T₁ (b) Torque is close to 3.5rT2 and the max lining pressure is close to 1.5 T2/br T₂
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
