Note: Missing
frequency is added. Please answer the question below.
Q: The circuit in

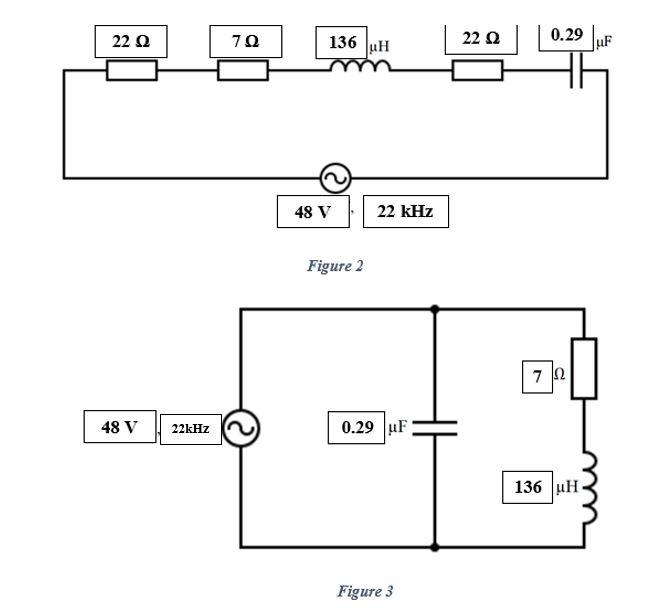

figure 2 is rearranged to fix the operation of the inverter. A new
circuit is formed as shown in figure 3.
(i) Determine:
(a) the total impedance,
(b) the supply current by one technique.
(ii) Determine
supply current by a technique other than used in question
4(i)(b).
(iii) Evaluate the
two techniques used.

Note Missing Frequency Is Added Please Answer The Question Below Q The Circuit In Figure 2 Is Rearranged To Fix The 1 (26.38 KiB) Viewed 31 times
