See figure 1 for both problems 1) S (Stress) Sx (Normal stress in the X direction), Txy (Shear stress on the X plane) Sx

[answerhappygod]

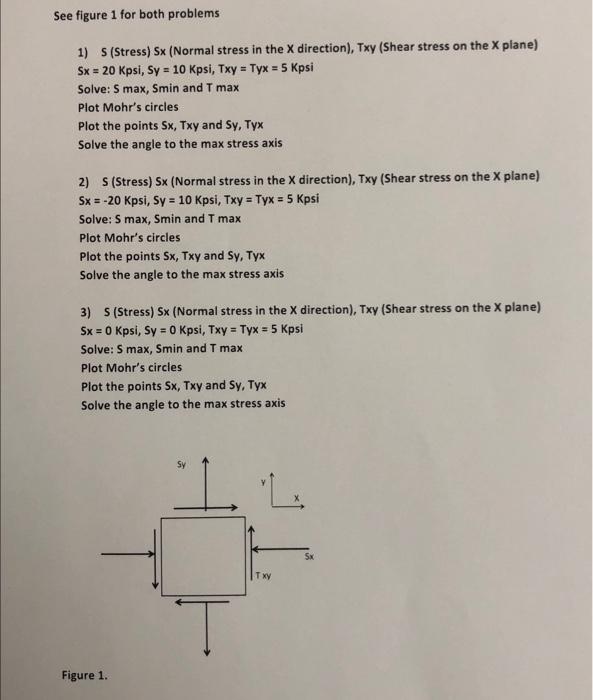

See Figure 1 For Both Problems 1 S Stress Sx Normal Stress In The X Direction Txy Shear Stress On The X Plane Sx 1 (38.34 KiB) Viewed 35 times

See figure 1 for both problems 1) S (Stress) Sx (Normal stress in the X direction), Txy (Shear stress on the X plane) Sx = 20 Kpsi, Sy = 10 Kpsi, Txy = Tyx = 5 Kpsi Solve: S max, Smin and T max Plot Mohr's circles Plot the points Sx, Txy and Sy, Tyx Solve the angle to the max stress axis 2) S (Stress) Sx (Normal stress in the X direction), Txy (Shear stress on the X plane) Sx = -20 Kpsi, Sy= 10 Kpsi, Txy = Tyx = 5 Kpsi Solve: S max, Smin and T max Plot Mohr's circles Plot the points Sx, Txy and Sy, Tyx Solve the angle to the max stress axis 3) S (Stress) Sx (Normal stress in the X direction), Txy (Shear stress on the X plane) Sx = 0 Kpsi, Sy = 0 Kpsi, Txy = Tyx = 5 Kpsi Solve: S max, Smin and T max Plot Mohr's circles Plot the points Sx, Txy and Sy, Tyx Solve the angle to the max stress axis 1 T T Figure 1. Txy
