Question 15 1 pts What is the pressure at gauge P2 in psi for the meter- out circuit shown in the figure below? The pump

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 15 1 pts What is the pressure at gauge P2 in psi for the meter- out circuit shown in the figure below? The pump

Post by answerhappygod »

Question 15 1 Pts What Is The Pressure At Gauge P2 In Psi For The Meter Out Circuit Shown In The Figure Below The Pump 1
Question 15 1 Pts What Is The Pressure At Gauge P2 In Psi For The Meter Out Circuit Shown In The Figure Below The Pump 1 (116.8 KiB) Viewed 35 times

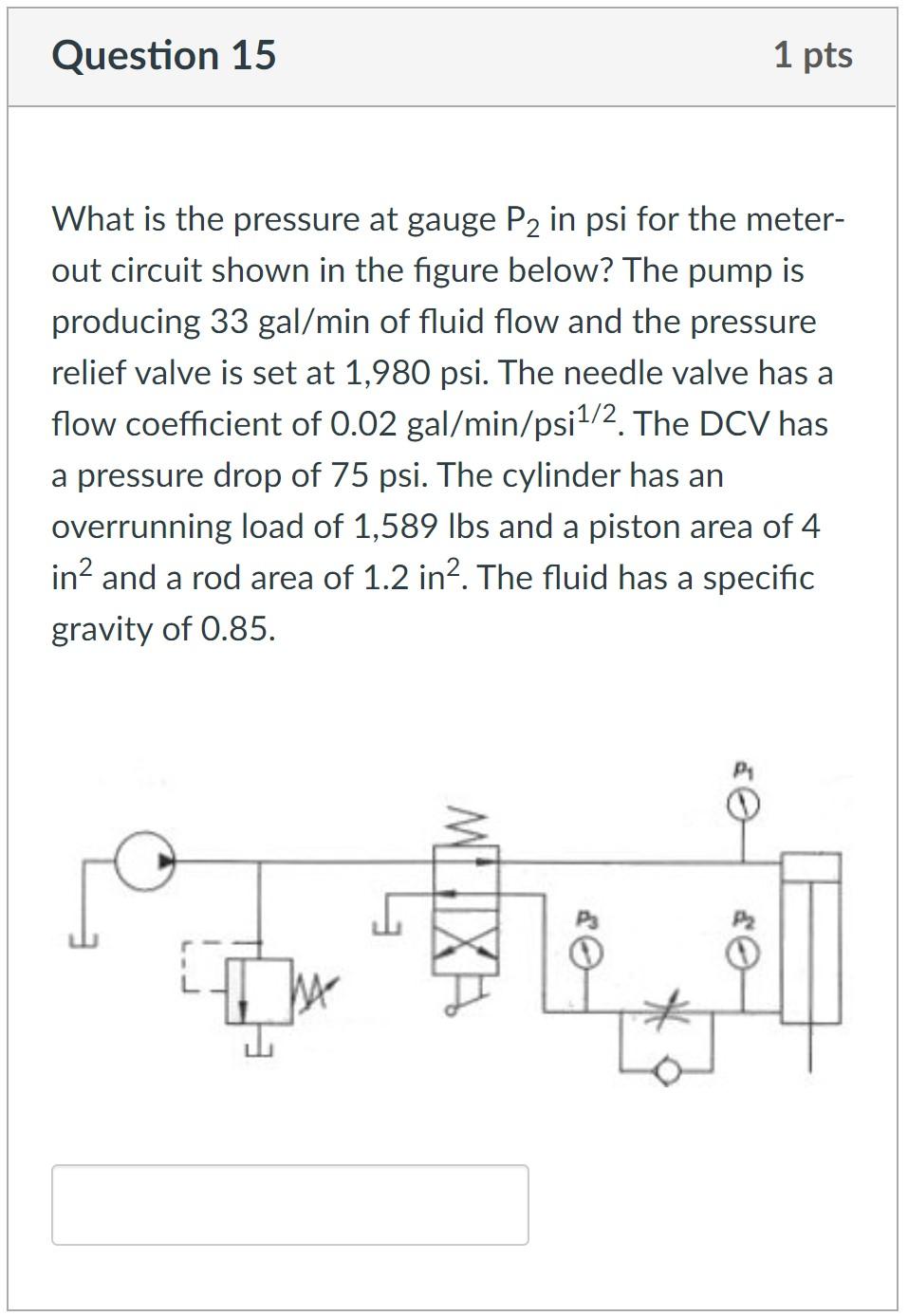

Question 15 1 pts What is the pressure at gauge P2 in psi for the meter- out circuit shown in the figure below? The pump is producing 33 gal/min of fluid flow and the pressure relief valve is set at 1,980 psi. The needle valve has a flow coefficient of 0.02 gal/min/psi ¹/2. The DCV has a pressure drop of 75 psi. The cylinder has an overrunning load of 1,589 lbs and a piston area of 4 in² and a rod area of 1.2 in². The fluid has a specific gravity of 0.85. H MIX
