Question 14 1 pts What is the extension speed of the cylinder in ft/s for the bleed-off circuit shown in the figure? The

Post by answerhappygod »

Question 14 1 Pts What Is The Extension Speed Of The Cylinder In Ft S For The Bleed Off Circuit Shown In The Figure The 1
Question 14 1 Pts What Is The Extension Speed Of The Cylinder In Ft S For The Bleed Off Circuit Shown In The Figure The 1 (111.28 KiB) Viewed 31 times

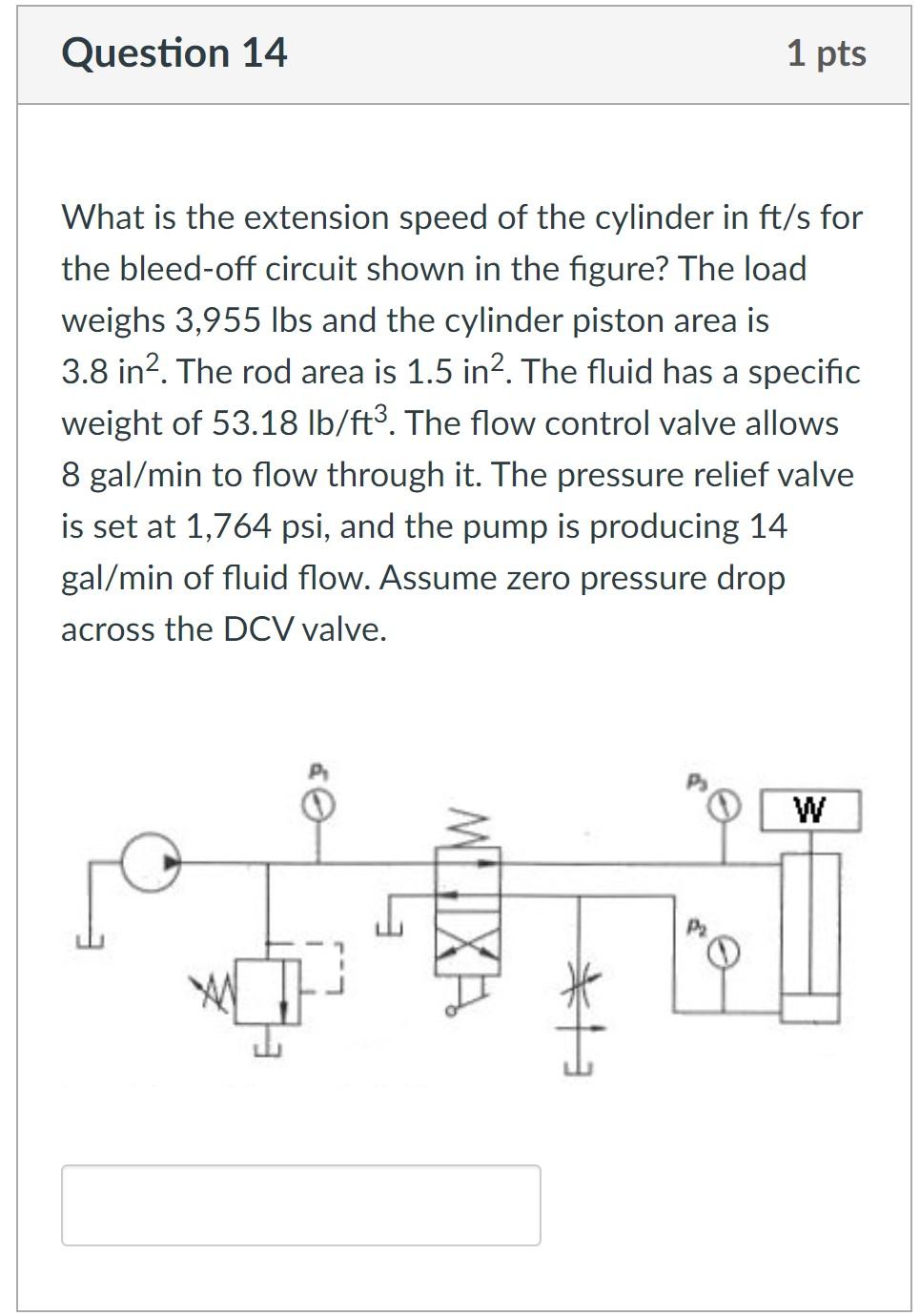

Question 14 1 pts What is the extension speed of the cylinder in ft/s for the bleed-off circuit shown in the figure? The load weighs 3,955 lbs and the cylinder piston area is 3.8 in². The rod area is 1.5 in². The fluid has a specific weight of 53.18 lb/ft3. The flow control valve allows 8 gal/min to flow through it. The pressure relief valve is set at 1,764 psi, and the pump is producing 14 gal/min of fluid flow. Assume zero pressure drop across the DCV valve. MIXA W
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
