Water flows in a 90-degree bend with a velocity of 1 m/s. The downstream exits the bend as a jet (Pressure=0). Which one
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Water flows in a 90-degree bend with a velocity of 1 m/s. The downstream exits the bend as a jet (Pressure=0). Which one

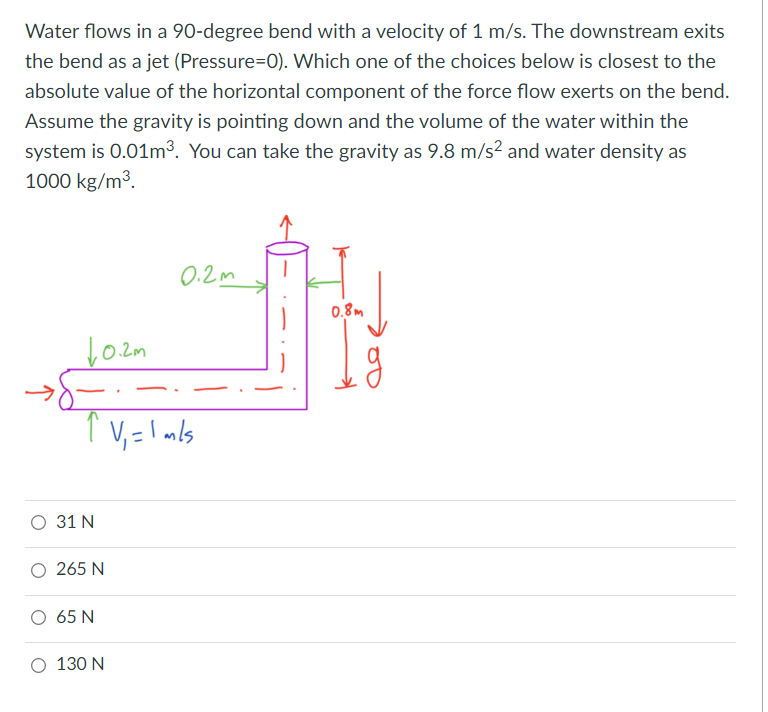

Water flows in a 90-degree bend with a velocity of 1 m/s. The downstream exits the bend as a jet (Pressure=0). Which one of the choices below is closest to the absolute value of the horizontal component of the force flow exerts on the bend. Assume the gravity is pointing down and the volume of the water within the system is 0.01m³. You can take the gravity as 9.8 m/s² and water density as 1000 kg/m³. 0.2m 0.8m 10.2m O 31N "V₁ = 1 m/s 265 N O 65 N Q 130 N g
