That's all

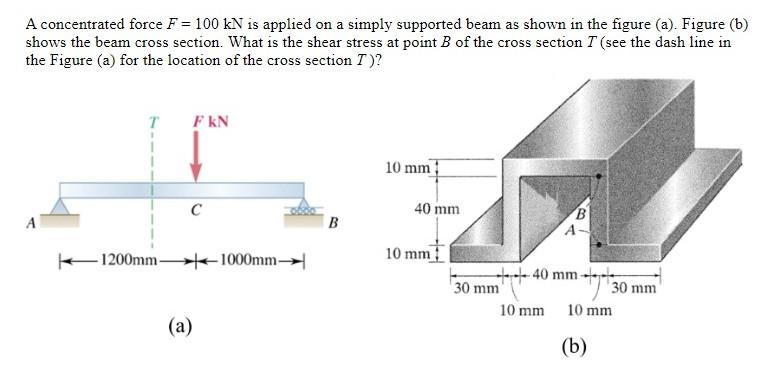

A concentrated force F = 100 kN is applied on a simply supported beam as shown in the figure (a). Figure (b) shows the beam cross section. What is the shear stress at point B of the cross section 7 (see the dash line in the Figure (a) for the location of the cross section I)? F KN 10 mm C A 1200mm 1000mm→→→ +40 mm 30 10 mm 10 mm (a) B 40 mm 10 mm 30 mm (b) 30 mm
