A closed-loop system is analyzed. It is found that at the critical frequency wc, the closed- loop gain is 4 dB and the o

Post by answerhappygod »

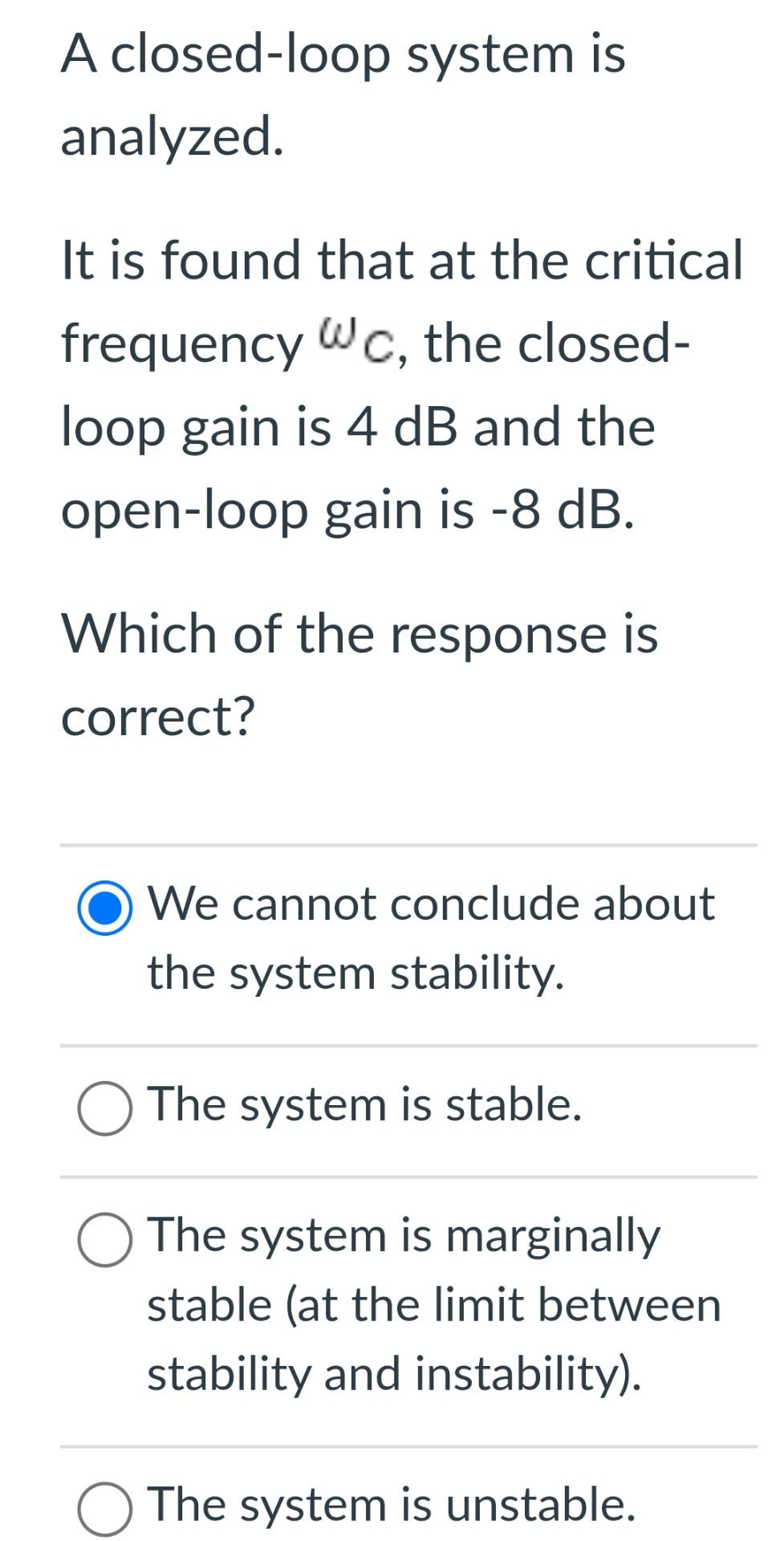

A Closed Loop System Is Analyzed It Is Found That At The Critical Frequency Wc The Closed Loop Gain Is 4 Db And The O 1
A Closed Loop System Is Analyzed It Is Found That At The Critical Frequency Wc The Closed Loop Gain Is 4 Db And The O 1 (137.83 KiB) Viewed 42 times
A closed-loop system is analyzed. It is found that at the critical frequency wc, the closed- loop gain is 4 dB and the open-loop gain is -8 dB. Which of the response is correct? We cannot conclude about the system stability. The system is stable. O The system is marginally stable (at the limit between stability and instability). O The system is unstable.
