We consider a dynamical system represented by the block diagram: Simple negative feedback: input, U(s) E(s) T₁(s) X(s) o

Post by answerhappygod »

We Consider A Dynamical System Represented By The Block Diagram Simple Negative Feedback Input U S E S T S X S O 1
We Consider A Dynamical System Represented By The Block Diagram Simple Negative Feedback Input U S E S T S X S O 1 (101.11 KiB) Viewed 25 times
Please show all working clearly. Thanks

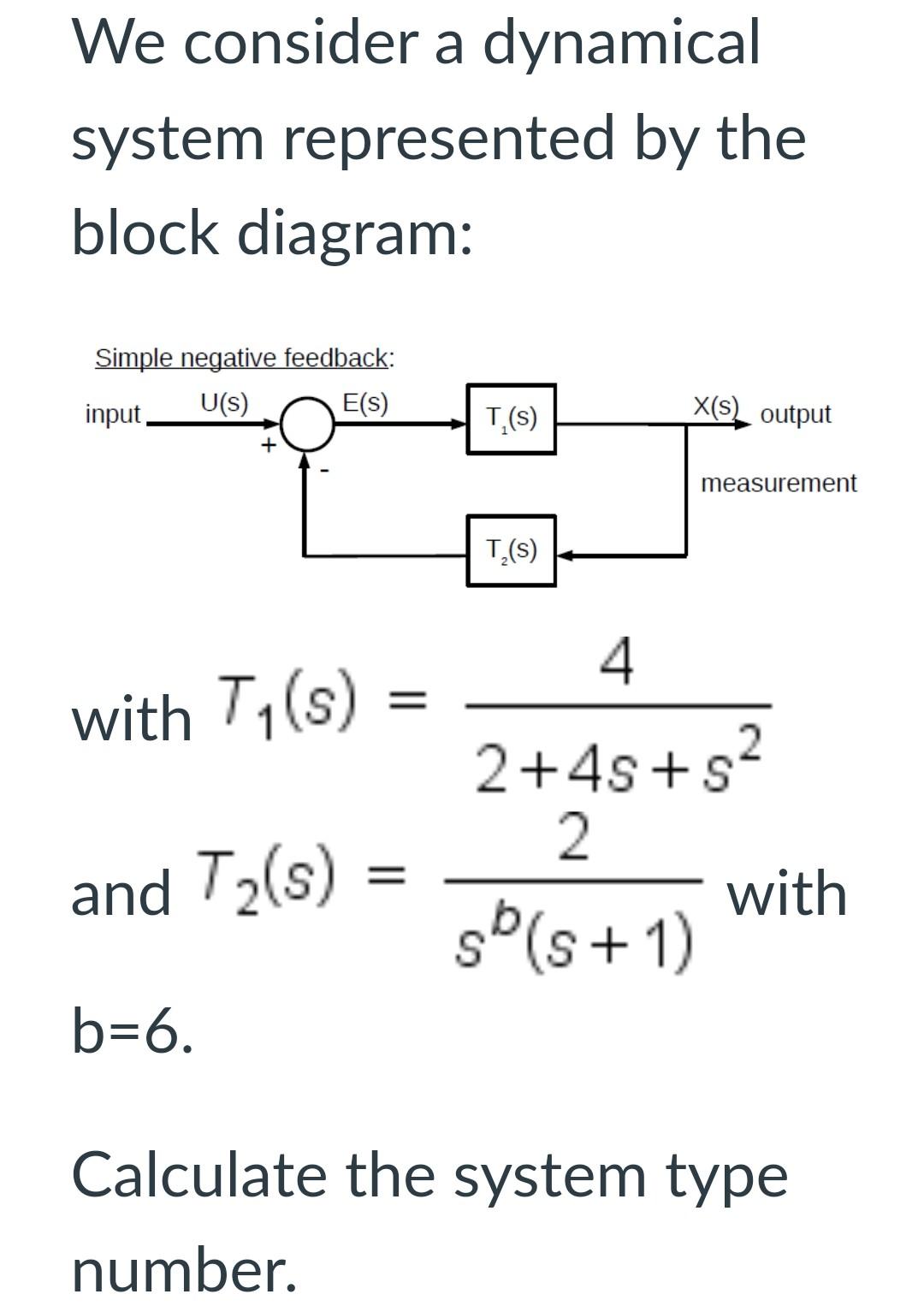

We consider a dynamical system represented by the block diagram: Simple negative feedback: input, U(s) E(s) T₁(s) X(s) output + measurement T₂(s) 4 with T₁(s) 2+4s+s² 2 s(s+1) and T₂(s) b=6. Calculate the system type number. with
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
