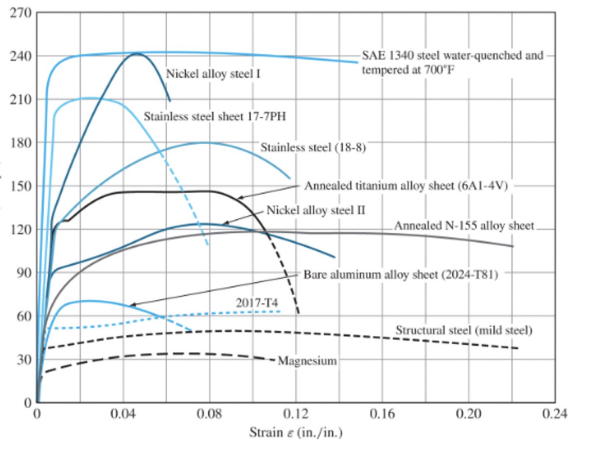

270 240 210 180 150 120 90 60 30 O 0 04 Nickel Alloy Steel I Stainless Steel Sheet 17 7ph 0 08 Stainless Steel 18 8 N 1 (156.96 KiB) Viewed 21 times
270 240 210 180 150 120 90 60 30 O 0.04 Nickel alloy steel I Stainless steel sheet 17-7PH 0.08 Stainless steel (18-8) -Nickel alloy steel II 2017-T4 -SAE 1340 steel water-quenched and tempered at 700°F -Annealed titanium alloy sheet (6A1-4V) -Magnesium 0.12 Straine (in./in.) Annealed N-155 alloy sheet. Bare aluminum alloy sheet (2024-T81) Structural steel (mild steel) 0.20 0.16 0.24
1. 15 pts. Estimate the toughness of the following materials using the diagram on the last page: a. Nickel alloy steel I 5 pts. b. Nickel alloy steel II 5 pts. c. Magnesium 5 pts.
