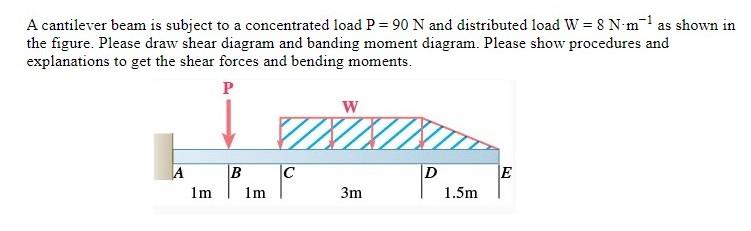

A cantilever beam is subject to a concentrated load P = 90 N and distributed load W = 8 N-m¹ as shown in the figure. Please draw shear diagram and banding moment diagram. Please show procedures and explanations to get the shear forces and bending moments. P W A C D E 3m 1m B 1m 1.5m
