I NEED ITS ACCURATE SOLUTION. NO PREVIOUS LINKS.

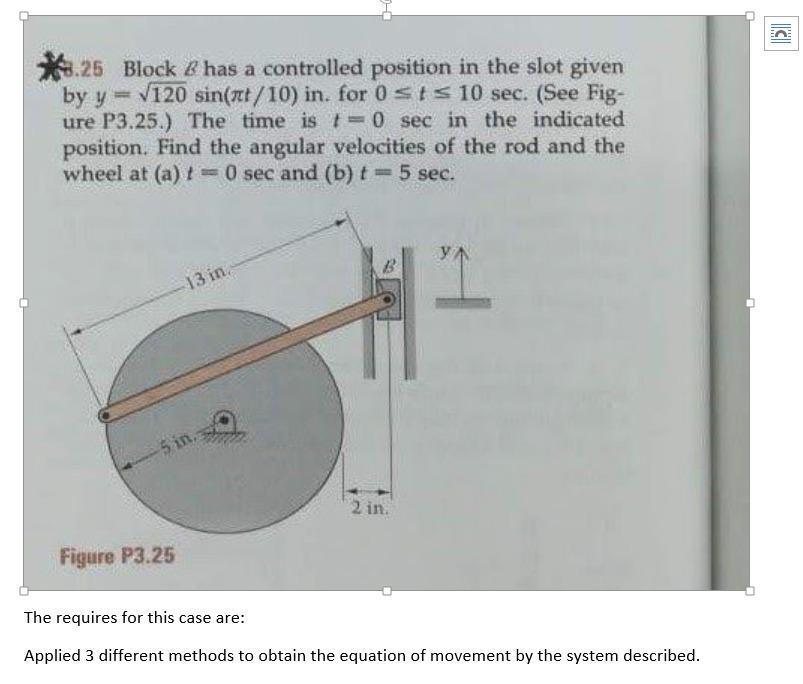

8.25 Block & has a controlled position in the slot given by y√120 sin(xt/10) in. for 0≤t≤ 10 sec. (See Fig- ure P3.25.) The time is t=0 sec in the indicated position. Find the angular velocities of the rod and the wheel at (a) t=0 sec and (b) t = 5 sec. 13 in. B 2 in. Figure P3.25 The requires for this case are: Applied 3 different methods to obtain the equation of movement by the system described. -5 in. 12.
