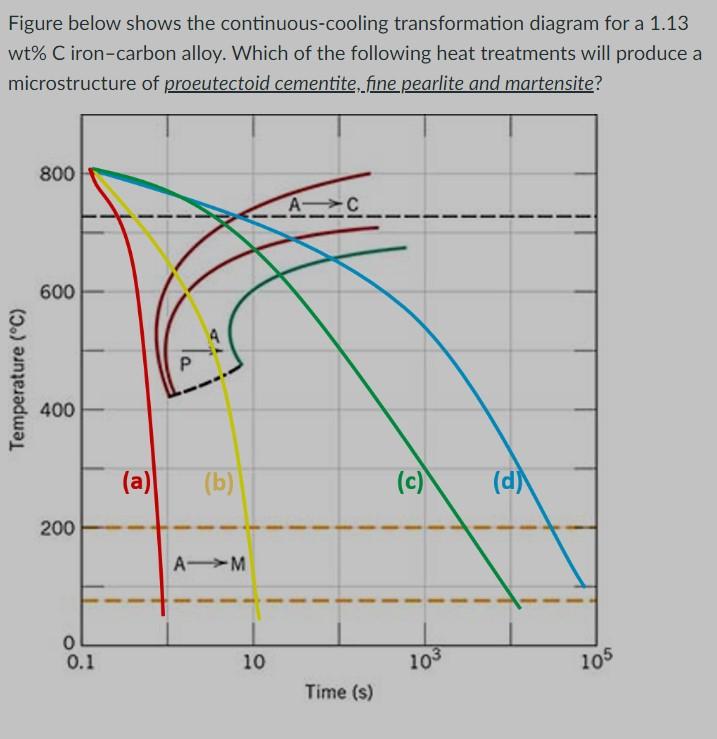

Figure below shows the continuous-cooling transformation diagram
for a 1.13 wt% C iron–carbon alloy. Which of the following
heat treatments will produce a microstructure
of proeutectoid cementite, fine pearlite and
martensite?
Figure Below Shows The Continuous Cooling Transformation Diagram For A 1 13 Wt C Iron Carbon Alloy Which Of The Follow 1 (51.6 KiB) Viewed 45 times
Figure below shows the continuous-cooling transformation diagram for a 1.13 wt% C iron-carbon alloy. Which of the following heat treatments will produce a microstructure of proeutectoid cementite, fine pearlite and martensite? 800 A C 600 Temperature (°C) 400 200 0 0.1 (a) P A (b) A-M 10 (c) 103 Time (s) (d) 105
