For the beam shown: a- Construct the shear and moment diagrams for the loaded beam shown. b- Determine the maximum absol

Post by answerhappygod »

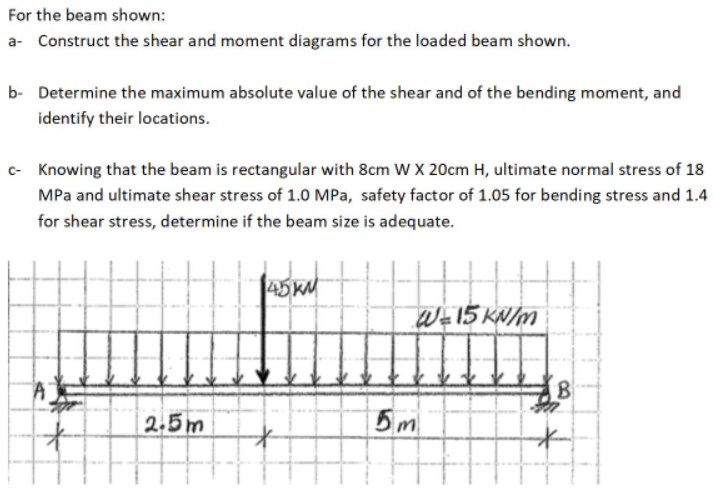

For The Beam Shown A Construct The Shear And Moment Diagrams For The Loaded Beam Shown B Determine The Maximum Absol 1
For The Beam Shown A Construct The Shear And Moment Diagrams For The Loaded Beam Shown B Determine The Maximum Absol 1 (248.32 KiB) Viewed 31 times
For the beam shown: a- Construct the shear and moment diagrams for the loaded beam shown. b- Determine the maximum absolute value of the shear and of the bending moment, and identify their locations. c- Knowing that the beam is rectangular with 8cm W X 20cm H, ultimate normal stress of 18 MPa and ultimate shear stress of 1.0 MPa, safety factor of 1.05 for bending stress and 1.4 for shear stress, determine if the beam size is adequate. 45 KM W=15 kN/m 2.5m + 5m B
