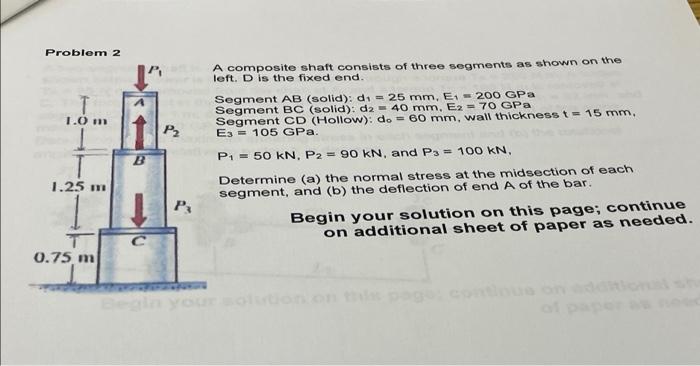

Problem 2 T 1.0 m 1.25 m 0.75 m B с P₂ Pa A composite shaft consists of three segments as shown on the left. D is the fixed end. Segment AB (solid): d₁= 25 mm, E₁= 200 GPa Segment BC (solid): d2 = 40 mm, E270 GPa Segment CD (Hollow): do = 60 mm, wall thickness t = 15 mm, Es 105 GPa. P₁ = 50 kN, P₂ = 90 KN, and P3 = 100 kN, Determine (a) the normal stress at the midsection of each segment, and (b) the deflection of end A of the bar. Begin your solution on this page; continue on additional sheet of paper as needed.
