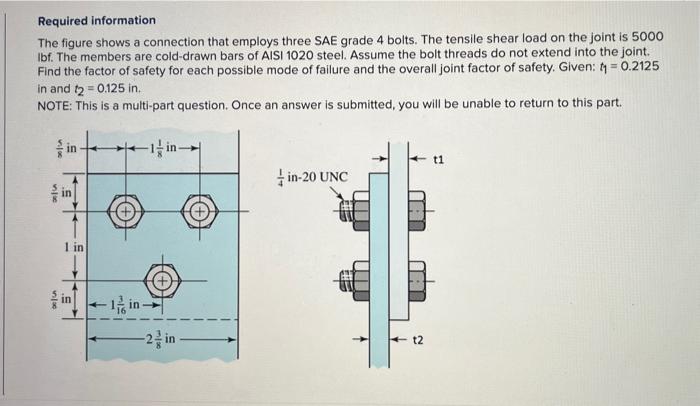

Required information The figure shows a connection that employs three SAE grade 4 bolts. The tensile shear load on the joint is 5000 Ibf. The members are cold-drawn bars of AISI 1020 steel. Assume the bolt threads do not extend into the joint. Find the factor of safety for each possible mode of failure and the overall joint factor of safety. Given: t = 0.2125 in and t2 = 0.125 in. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. t1 in-20 UNC vilo * * in] E 1 in E -2-in- t2

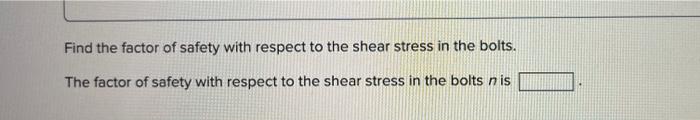

Find the factor of safety with respect to the shear stress in the bolts. The factor of safety with respect to the shear stress in the bolts nis
