A rectangular aluminium bar is fixed at both ends and has a 5kN point load placed in the center.
if the bar is 130mm in length and 80mm in depth.
Calculate the width of of the bar (h) so it will not fracture or shear.
The bar deflection must not exceed 0.2mm
.

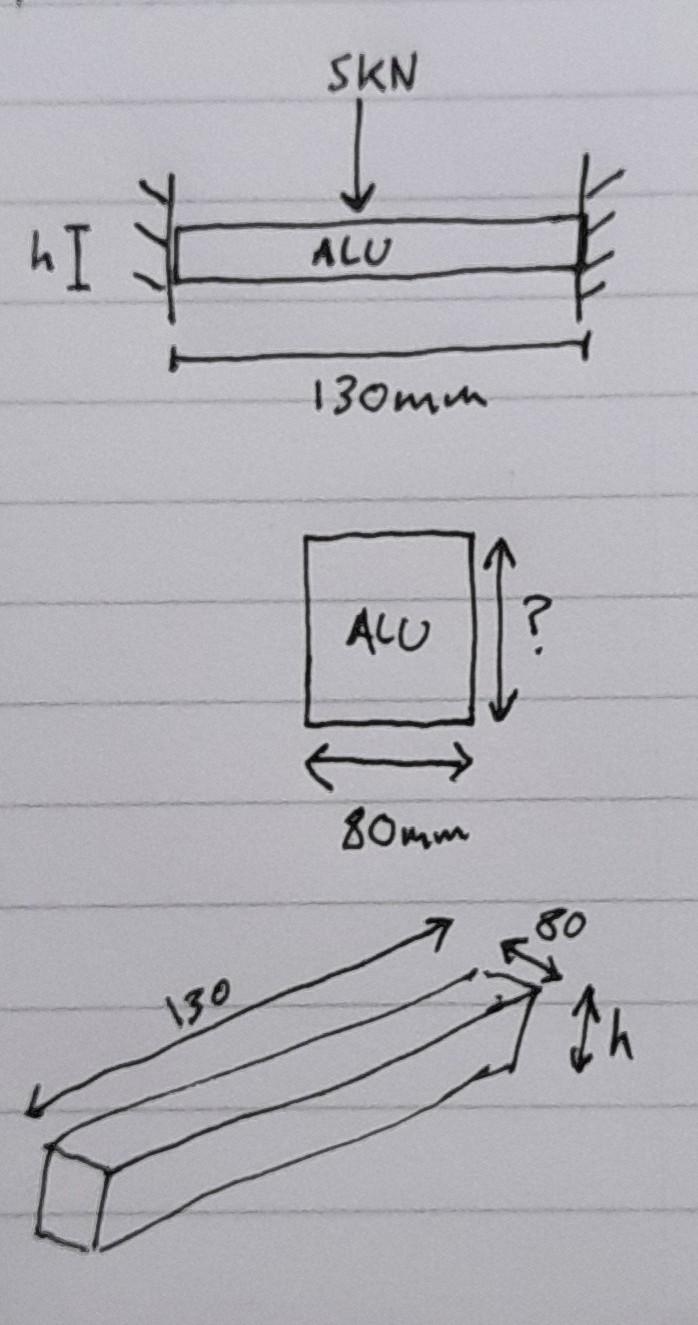

A Rectangular Aluminium Bar Is Fixed At Both Ends And Has A 5kn Point Load Placed In The Center If The Bar Is 130mm In 1 (75.84 KiB) Viewed 31 times
hI $ 130 SKN 1 ALU 130mm ALU 80mm ? 80 în
