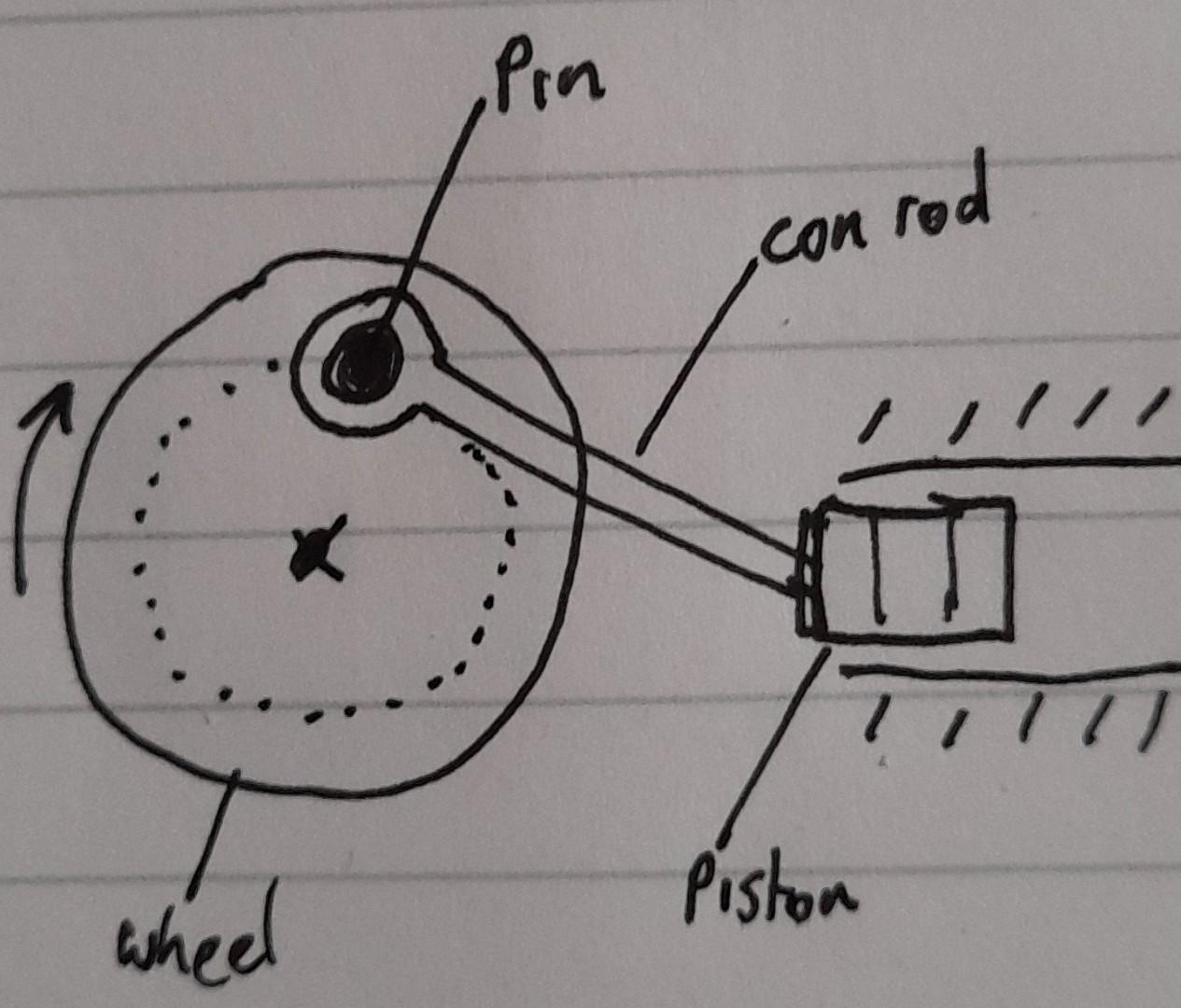

The connecting rod in a slider crank mechanism is held onto the rotating wheel by a pin.
Calculate the minimum diameter the pin to so it will not shear.
The the wheel has a max rotation speed of 1500rpm.
The distance of the pin from the centre of the wheel is 125mm
Make assumptions where necessary.
The Connecting Rod In A Slider Crank Mechanism Is Held Onto The Rotating Wheel By A Pin Calculate The Minimum Diameter 1 (111.7 KiB) Viewed 42 times
wheel Pin .con rod ///// Piston
