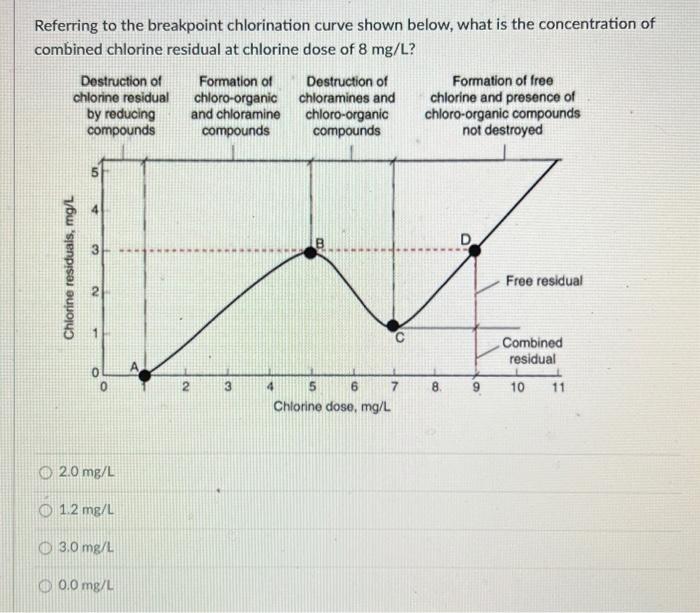

Referring to the breakpoint chlorination curve shown below, what is the concentration of combined chlorine residual at c

[answerhappygod]

Referring To The Breakpoint Chlorination Curve Shown Below What Is The Concentration Of Combined Chlorine Residual At C 1 (67.89 KiB) Viewed 36 times

Referring to the breakpoint chlorination curve shown below, what is the concentration of combined chlorine residual at chlorine dose of 8 mg/L? Destruction of chlorine residual by reducing Formation of chloro-organic and chloramine compounds Destruction of chloramines and chloro-organic compounds Formation of free chlorine and presence of chloro-organic compounds not destroyed compounds Free residual Combined residual L 5 6 7 10 11 Chlorine dose, mg/L 4 3 Chlorine residuals, mg/L 2 6 2.0 mg/L 0 1.2 mg/L O 3,0 mg/t ( 0.0 mg/L 8.
