A 20 resistor, a 0.1 H coil with a resistance of 5 2, and a 120 µF capacitor are connected in parallel to a 230 V, 50 Hz

Post by answerhappygod »

A 20 Resistor A 0 1 H Coil With A Resistance Of 5 2 And A 120 Uf Capacitor Are Connected In Parallel To A 230 V 50 Hz 1
A 20 Resistor A 0 1 H Coil With A Resistance Of 5 2 And A 120 Uf Capacitor Are Connected In Parallel To A 230 V 50 Hz 1 (41.14 KiB) Viewed 19 times

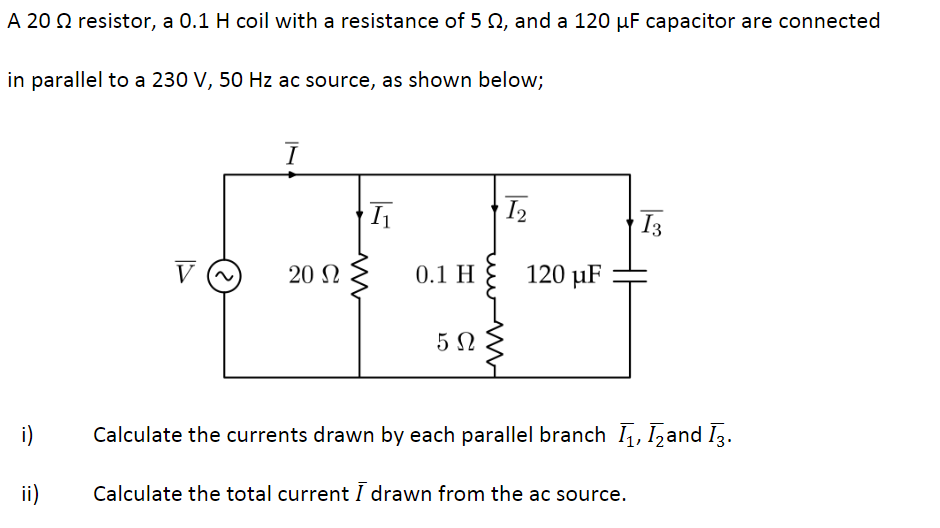

A 20 resistor, a 0.1 H coil with a resistance of 5 2, and a 120 µF capacitor are connected in parallel to a 230 V, 50 Hz ac source, as shown below; I I₁ I2 I3 V 20 Ω 0.1 H 120 μF 5Ω Calculate the currents drawn by each parallel branch I₁, I₂and Ī3. Calculate the total current I drawn from the ac source. i) ii)
