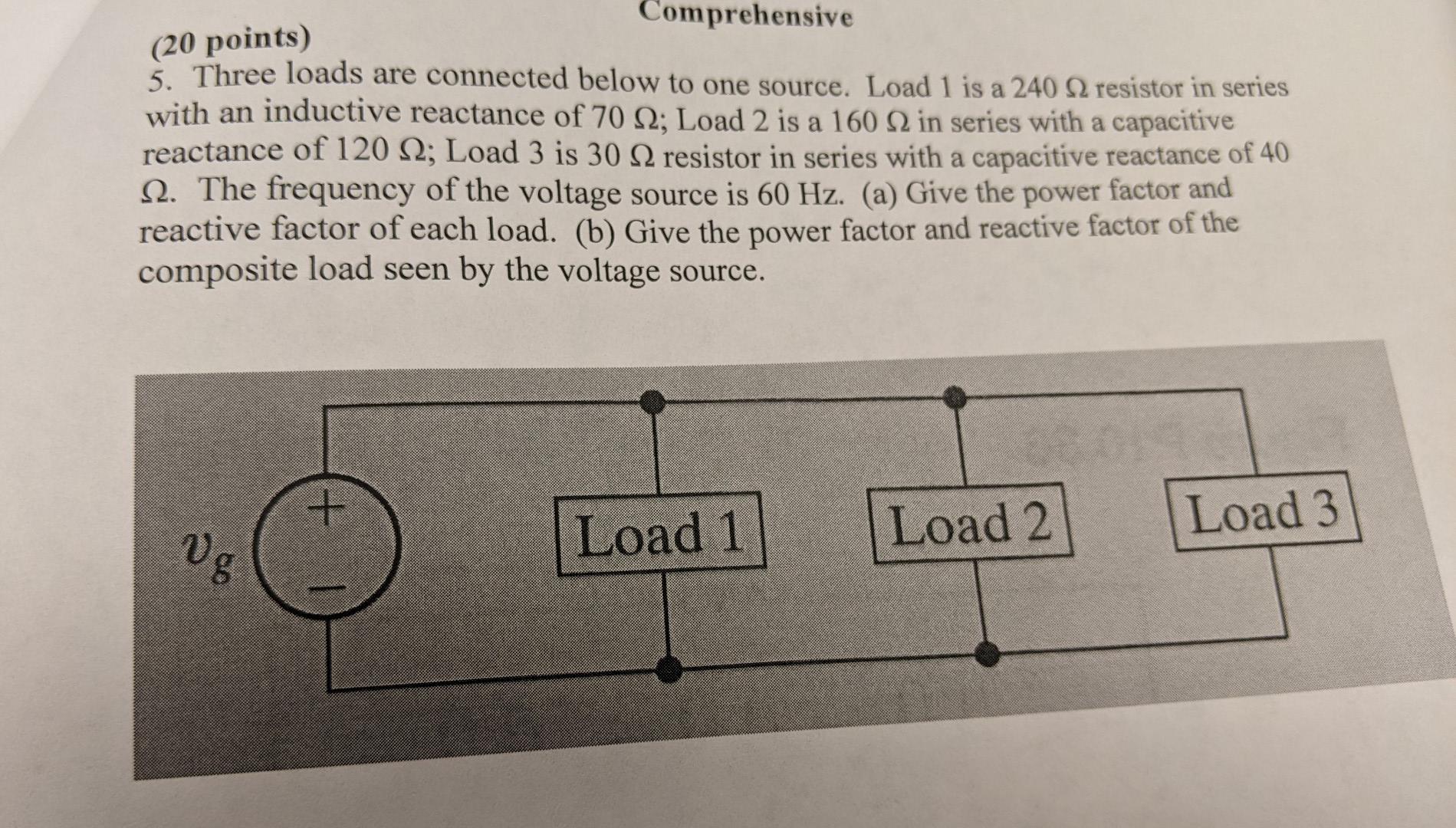

- Comprehensive 20 Points 5 Three Loads Are Connected Below To One Source Load 1 Is A 240 2 Resistor In Series With An 1 (334.61 KiB) Viewed 24 times
Comprehensive (20 points) 5. Three loads are connected below to one source. Load 1 is a 240 2 resistor in series with an inductive reactance of 70 2; Load 2 is a 160 2 in series with a capacitive reactance of 120 2; Load 3 is 30 2 resistor in series with a capacitive reactance of 40 2. The frequency of the voltage source is 60 Hz. (a) Give the power factor and reactive factor of each load. (b) Give the power factor and reactive factor of the composite load seen by the voltage source. Load 3 Load 2 Vg Load 1 +1
