Number of PLC Inputs Required XO - On / Off Switch. Number of PLC Outputs Required Q0 - Lamp (green) Q1 - Lamp (orange)

Post by answerhappygod »

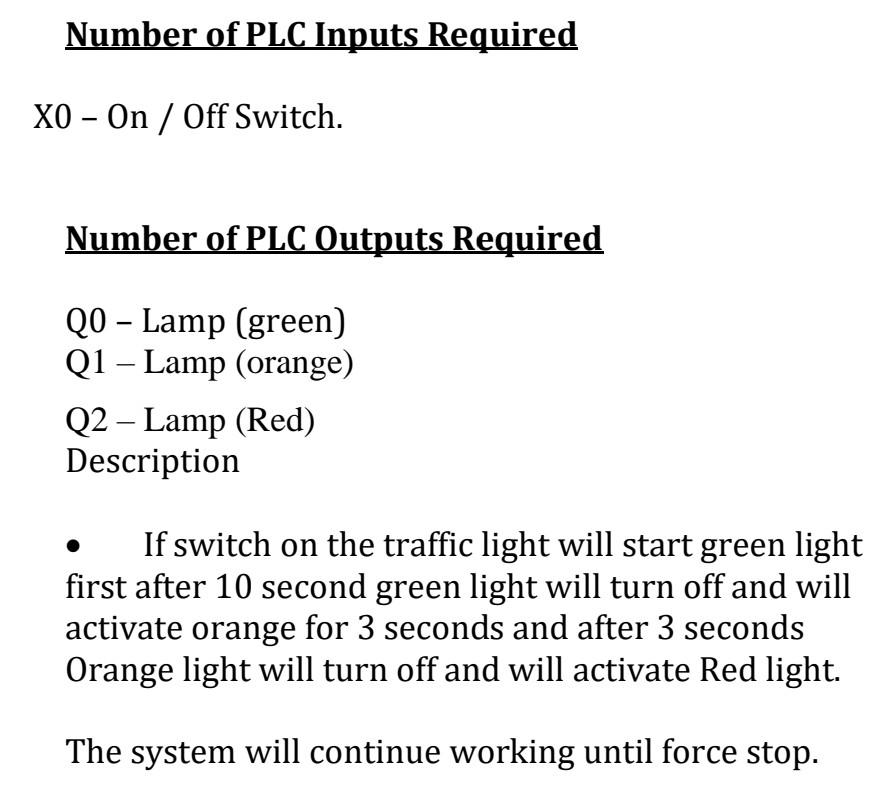

Number Of Plc Inputs Required Xo On Off Switch Number Of Plc Outputs Required Q0 Lamp Green Q1 Lamp Orange 1
Number Of Plc Inputs Required Xo On Off Switch Number Of Plc Outputs Required Q0 Lamp Green Q1 Lamp Orange 1 (75.63 KiB) Viewed 24 times
Number of PLC Inputs Required XO - On / Off Switch. Number of PLC Outputs Required Q0 - Lamp (green) Q1 - Lamp (orange) Q2- Lamp (Red) Description If switch on the traffic light will start green light first after 10 second green light will turn off and will activate orange for 3 seconds and after 3 seconds Orange light will turn off and will activate Red light. The system will continue working until force stop.
