8.8-5 The circuit shown below is an oscillator. Assuming that the op-amp out puts saturate at ±1ov accurately skelen the

Post by answerhappygod »

8 8 5 The Circuit Shown Below Is An Oscillator Assuming That The Op Amp Out Puts Saturate At 1ov Accurately Skelen The 1
8 8 5 The Circuit Shown Below Is An Oscillator Assuming That The Op Amp Out Puts Saturate At 1ov Accurately Skelen The 1 (29.97 KiB) Viewed 34 times

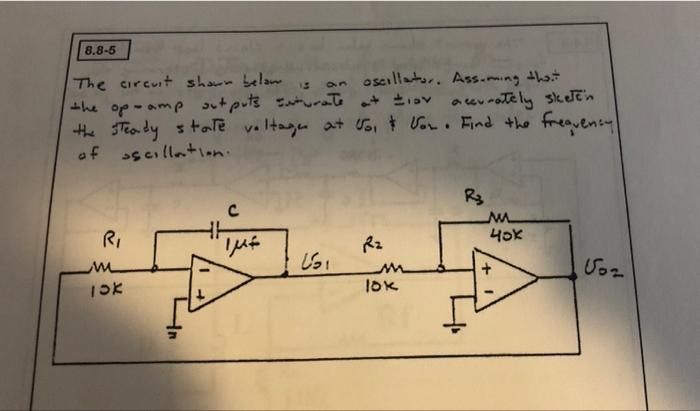

8.8-5 The circuit shown below is an oscillator. Assuming that the op-amp out puts saturate at ±1ov accurately skelen the steady state voltage at Jo, & Von. Find the frequency of oscillation. R3 C Iμf Rz lok R₁ m Isk HH اوا M 40k
