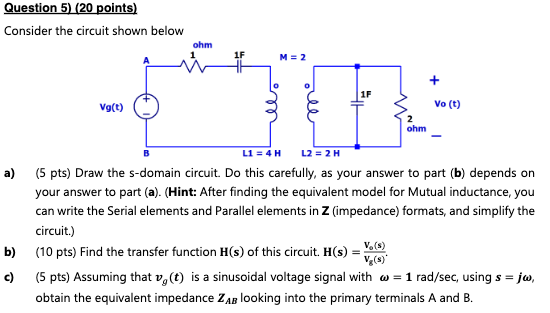

Question 5) (20 points) Consider the circuit shown below ohm 1F Vg(t) Vo (t) ohm L1 = 4 H L2= 2 H a) (5 pts) Draw the s-

[answerhappygod]

Question 5 20 Points Consider The Circuit Shown Below Ohm 1f Vg T Vo T Ohm L1 4 H L2 2 H A 5 Pts Draw The S 1 (39.07 KiB) Viewed 39 times

Question 5) (20 points) Consider the circuit shown below ohm 1F Vg(t) Vo (t) ohm L1 = 4 H L2= 2 H a) (5 pts) Draw the s-domain circuit. Do this carefully, as your answer to part (b) depends on your answer to part (a). (Hint: After finding the equivalent model for Mutual inductance, you can write the Serial elements and Parallel elements in Z (impedance) formats, and simplify the circuit.) b) (10 pts) Find the transfer function H(s) of this circuit. H(s) = (s) Vg(s)* c) (5 pts) Assuming that vo(t) is a sinusoidal voltage signal with = 1 rad/sec, using s = jw, obtain the equivalent impedance ZAB looking into the primary terminals A and B. 1F M = 2
