Please complete the following uploaded worksheet
from Electrical Principles and Practices Workbook 4th Edition
(ISBN: 0826918115).
Series Circuits Worksheet 12-4
Please Complete The Following Uploaded Worksheet From Electrical Principles And Practices Workbook 4th Edition Isbn 08 1 (82.97 KiB) Viewed 33 times

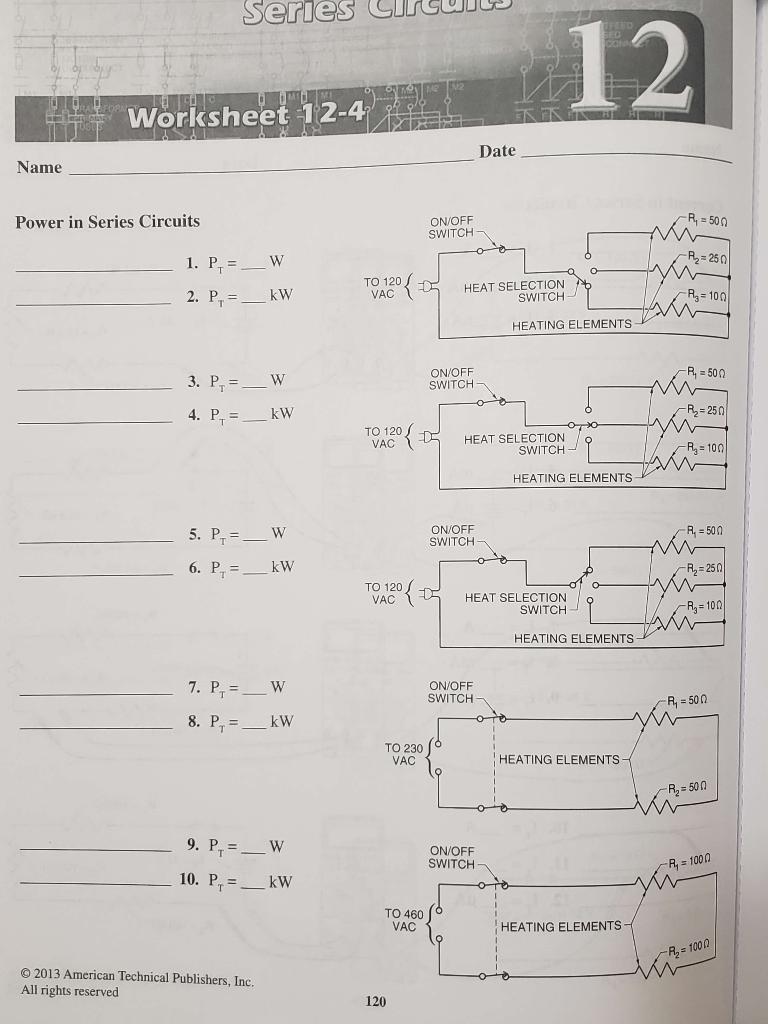

Series Worksheet 12-4 18 1. P₁ = __ W 2. P,= KW 3. P₁ = W 4. P₁= kW 5. P₁= __ W 6. P₁=kW 7. P₁ = _____ W 8. P₁= kW 9. P₁ = _____ W 10. P = kW Name Power in Series Circuits 2013 American Technical Publishers, Inc. All rights reserved TO 120 VAC TO 120 VAC TO 120 VAC ON/OFF SWITCH H 120 TO 460 VAC D TO 230 ( VAC ON/OFF SWITCH- Date HEAT SELECTION SWITCH- 12 O HEATING ELEMENTS ON/OFF SWITCH E ON/OFF SWITCH- HEAT SELECTION SWITCH- HEATING ELEMENTS ON/OFF SWITCH HEAT SELECTION SWITCH HEATING ELEMENTS HEATING ELEMENTS- HEATING ELEMENTS- -R₁ = 500 -R₂=250 -R₂=100 -R₁=500 R₂=250 -R₂=100 ww ww -R₁ = 500 R₂=250 R₂=100 www -R₁ = 500 -R₂=500 -R₁ = 1000 -R₂ = 1000
