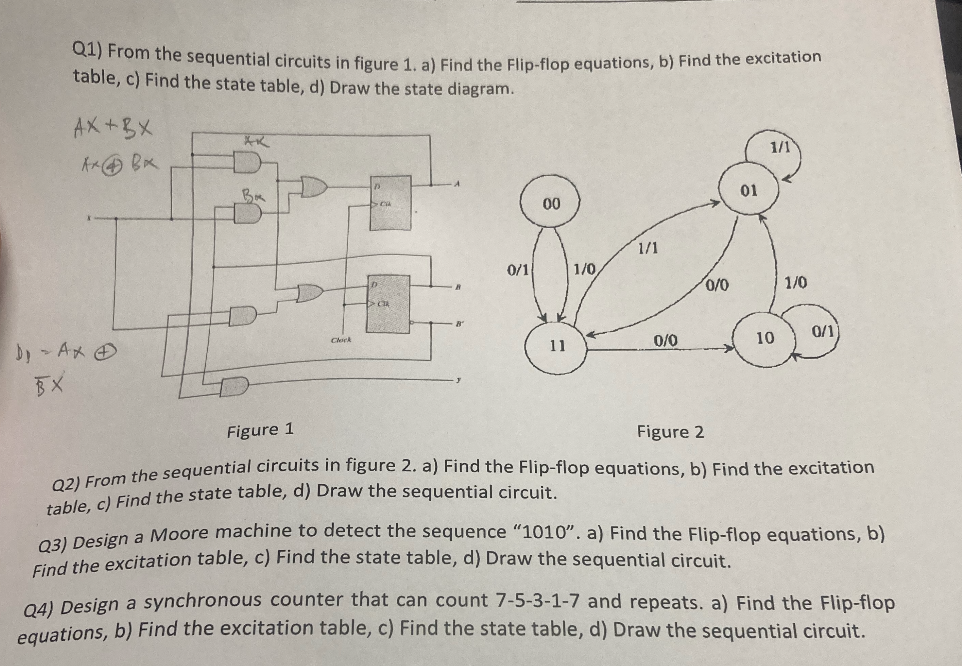

Q1) From the sequential circuits in figure 1. a) Find the Flip-flop equations, b) Find the excitation table, c) Find the

[answerhappygod]

Q1 From The Sequential Circuits In Figure 1 A Find The Flip Flop Equations B Find The Excitation Table C Find The 1 (1.01 MiB) Viewed 31 times

Q1) From the sequential circuits in figure 1. a) Find the Flip-flop equations, b) Find the excitation table, c) Find the state table, d) Draw the state diagram. AX+BX 1/1 Ахова SCR 00 1/1 DOR 0/1 1/0 0/0 01 1/0 Clock 0/1 11 0/0 10 DI - Ax BX Figure 1 Figure 2 Q2) From the sequential circuits in figure 2. a) Find the Flip-flop equations, b) Find the excitation table, c) Find the state table, d) Draw the sequential circuit. Q3) Design a Moore machine to detect the sequence "1010". a) Find the Flip-flop equations, b) Find the excitation table, c) Find the state table, d) Draw the sequential circuit. Q4) Design a synchronous counter that can count 7-5-3-1-7 and repeats. a) Find the Flip-flop equations, b) Find the excitation table, c) Find the state table, d) Draw the sequential circuit.
