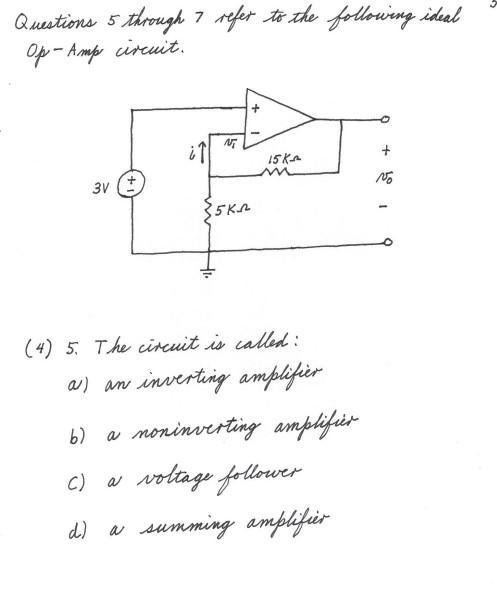

Questions 5 through 7 refer to the following ideal Op-Amp circuit. N₁ iT 15K 3V No 5Kn (4) 5. The circuit is called: a) an inverting amplifier b) a noninverting amplifier C) a voltage follower d) a summing amplifier
6. The current, i, is equal to : a) 0.6 ma. b) -0.6 ma. C) 0 ma. d) 1.2 ma.
7. The voltage, v₁, is equal to : a) - 3 V 6) OV C) 3 V. d) 12 V.
