-Measure the average voltage of the output waveforms -Records its ripple peak-to-peak voltage. -Compute the ripple facto

Post by answerhappygod »

Measure The Average Voltage Of The Output Waveforms Records Its Ripple Peak To Peak Voltage Compute The Ripple Facto 1
Measure The Average Voltage Of The Output Waveforms Records Its Ripple Peak To Peak Voltage Compute The Ripple Facto 1 (49.51 KiB) Viewed 40 times

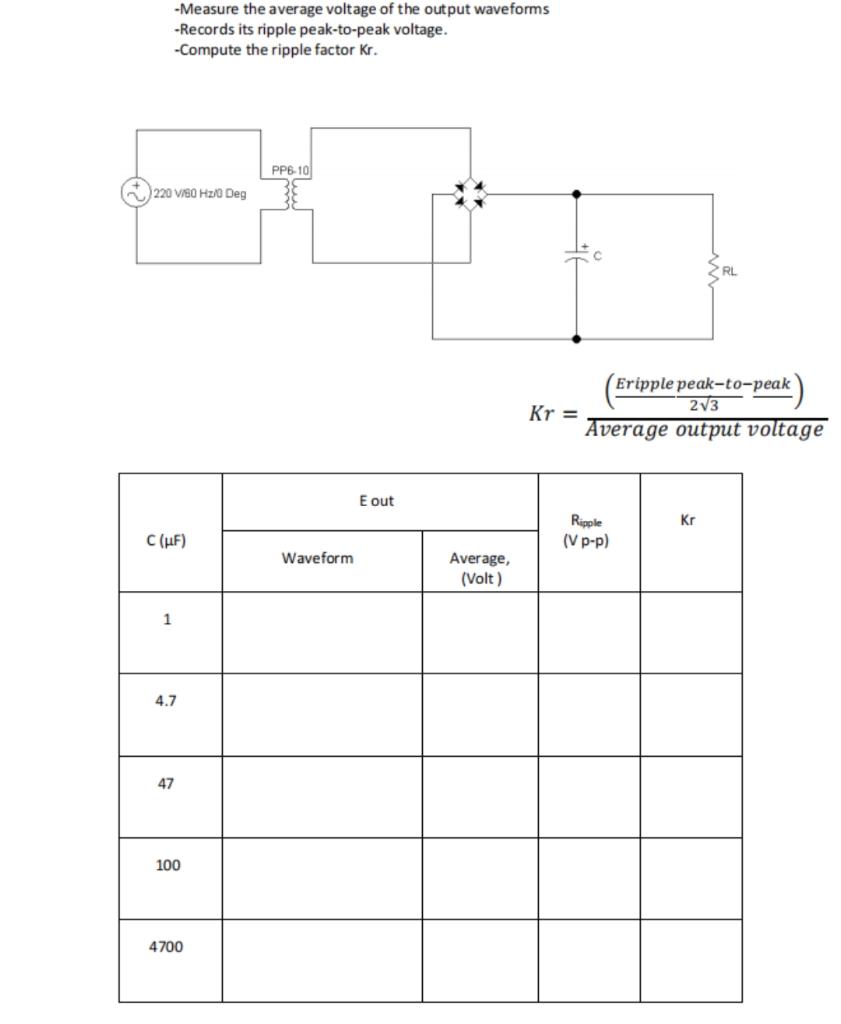

-Measure the average voltage of the output waveforms -Records its ripple peak-to-peak voltage. -Compute the ripple factor Kr. PP6-10 220 V/60 Hz/0 Deg C (μF) 1 4.7 47 100 4700 Waveform E out Average, (Volt) RL Eripple peak-to-peak 2√3 Average output voltage Kr Ripple (Vp-p) Kr=
