(f) For the given CMOS logic circuit, show the states of conduction (in terms of ON and OFF) of each of the transistors
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(f) For the given CMOS logic circuit, show the states of conduction (in terms of ON and OFF) of each of the transistors

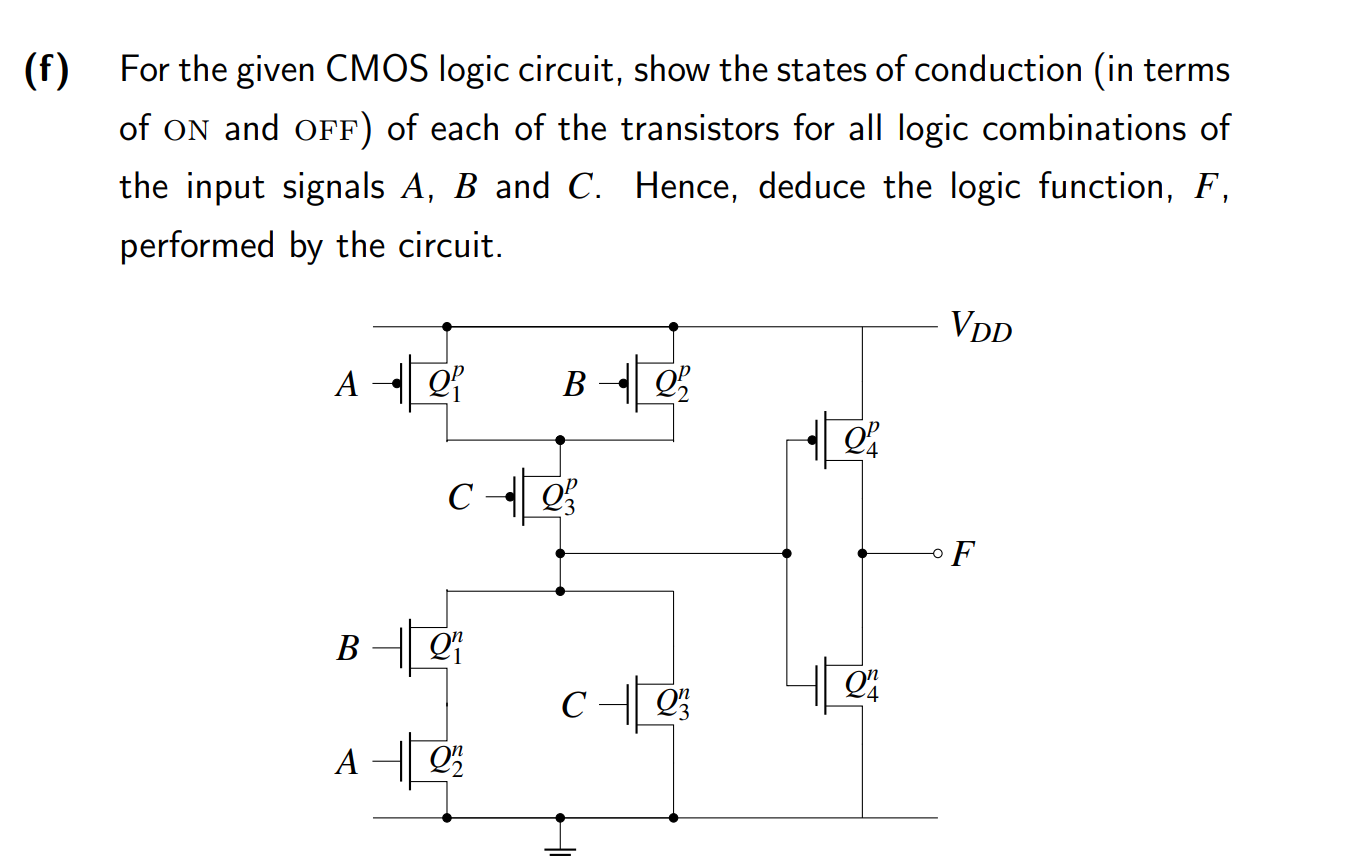

(f) For the given CMOS logic circuit, show the states of conduction (in terms of ON and OFF) of each of the transistors for all logic combinations of the input signals A, B and C. Hence, deduce the logic function, F, performed by the circuit. VDD AO B-40²₂ В Q F B0₁ A 2₂ C-0² otɔ
