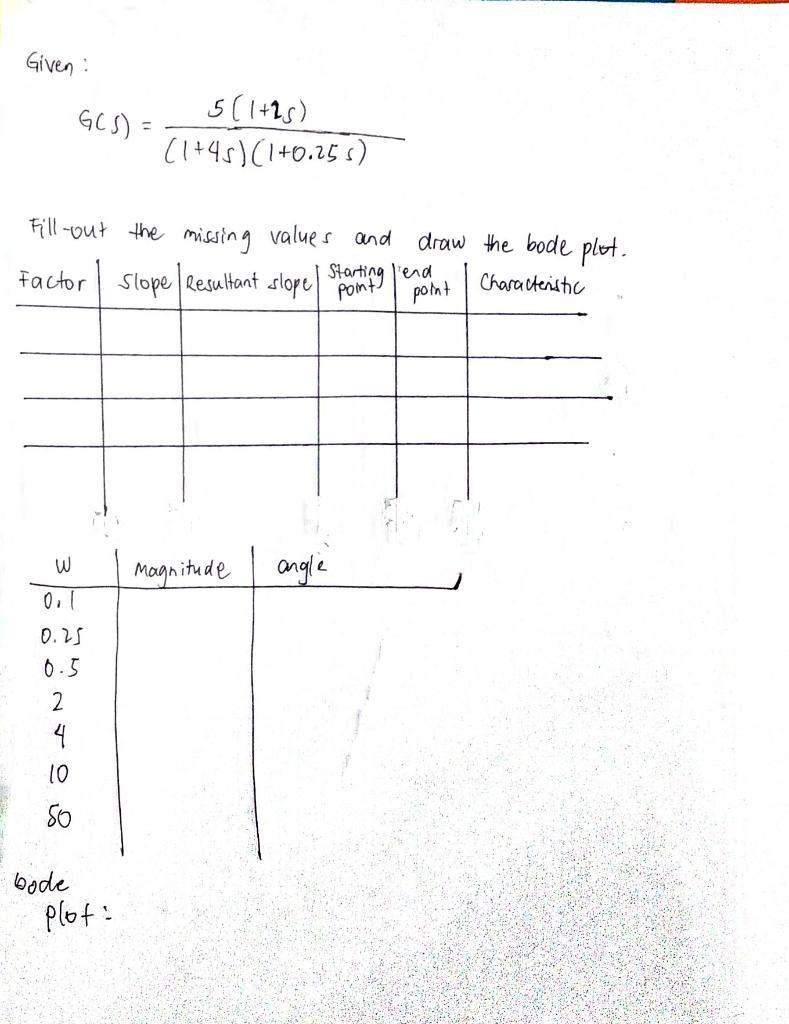

Given Gcs 5 1 25 1 45 1 0 25 Draw The Bode Plot Fill Out The Missing Values And Slope Resultant Slope Startin 1 (79.63 KiB) Viewed 30 times
Fill-out the first table (Factor, slope, etc.). Show
solution. Thank you.
Given : GCS). = 5(1+25) (1+45)(1+0.25) draw the bode plot. Fill-out the missing values and Slope Resultant slope Starting lend Factor Characteristic point Magnitude angle W 0.1 0.25 0.5 CONTO 4 10 50 bode Plot:
