6. (a) (10 points total) Consider a network function of the following form: K. (jw) H(w)= where K is a constant and the

[answerhappygod]

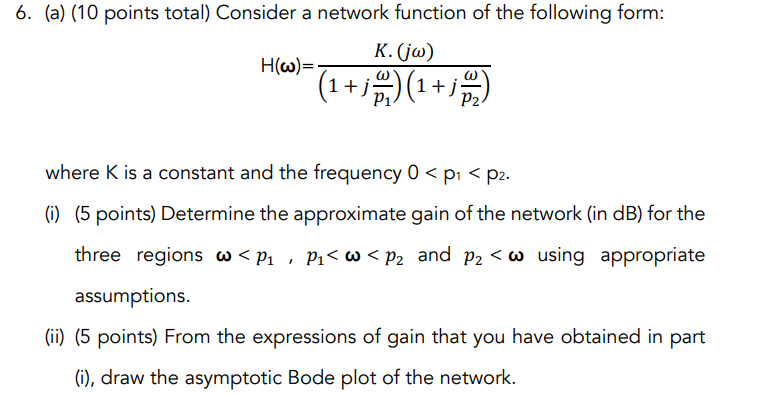

6 A 10 Points Total Consider A Network Function Of The Following Form K Jw H W Where K Is A Constant And The 1 (59.78 KiB) Viewed 41 times

6. (a) (10 points total) Consider a network function of the following form: K. (jw) H(w)= where K is a constant and the frequency 0 < p₁ < P2. (i) (5 points) Determine the approximate gain of the network (in dB) for the three regions w<P₁, P₁ < W< P₂ and P₂ <w using appropriate assumptions. (ii) (5 points) From the expressions of gain that you have obtained in part (i), draw the asymptotic Bode plot of the network. (1+²)(¹+²)
