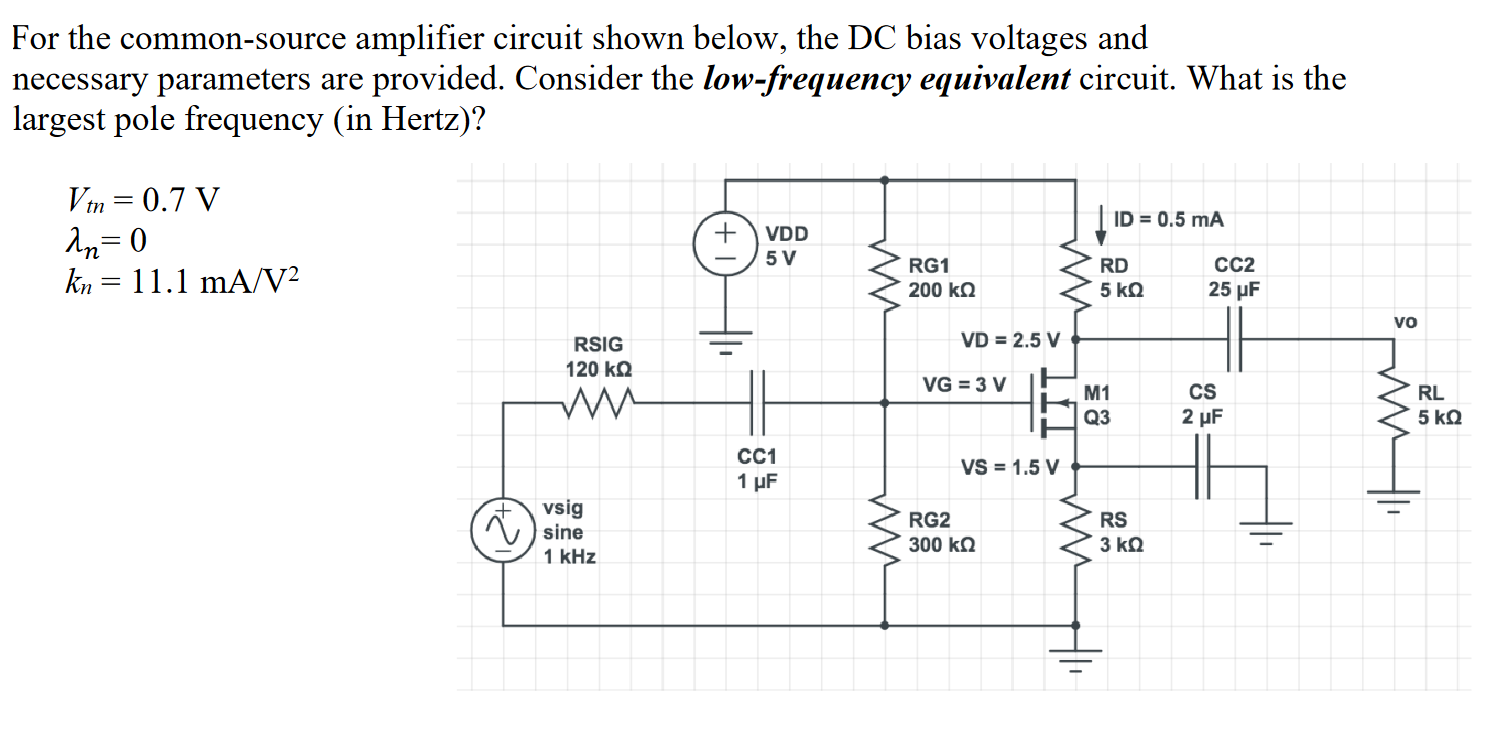

For the common-source amplifier circuit shown below, the DC bias voltages and necessary parameters are provided. Consider the low-frequency equivalent circuit. What is the largest pole frequency (in Hertz)? Vtn = 0.7 V λn=0 ID = 0.5 mA + VDD 5 V kn 11.1 mA/V² vo RSIG 120 ΚΩ ww vsig sine 1 kHz CC1 1 μF ww ww RG1 200 ΚΩ VD = 2.5 V VG = 3 V ww VS = 1.5 V RG2 300 ΚΩ RD 5 ΚΩ M1 Q3 ww RS 3 ΚΩ CC2 25 μF CS 2 μF RL 5 ΚΩ
What is the mid-band small-signal gain of the circuit in problem 3 for An= 0 and 0.05 V-¹?
