1. Consider the circuit shown below. Assume that v₂₁ (t)=12 cos (@t-30°) mV, 2 (t) = 2 cos (at-45°) μA, R₁ = 2 k2, C = 1
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. Consider the circuit shown below. Assume that v₂₁ (t)=12 cos (@t-30°) mV, 2 (t) = 2 cos (at-45°) μA, R₁ = 2 k2, C = 1

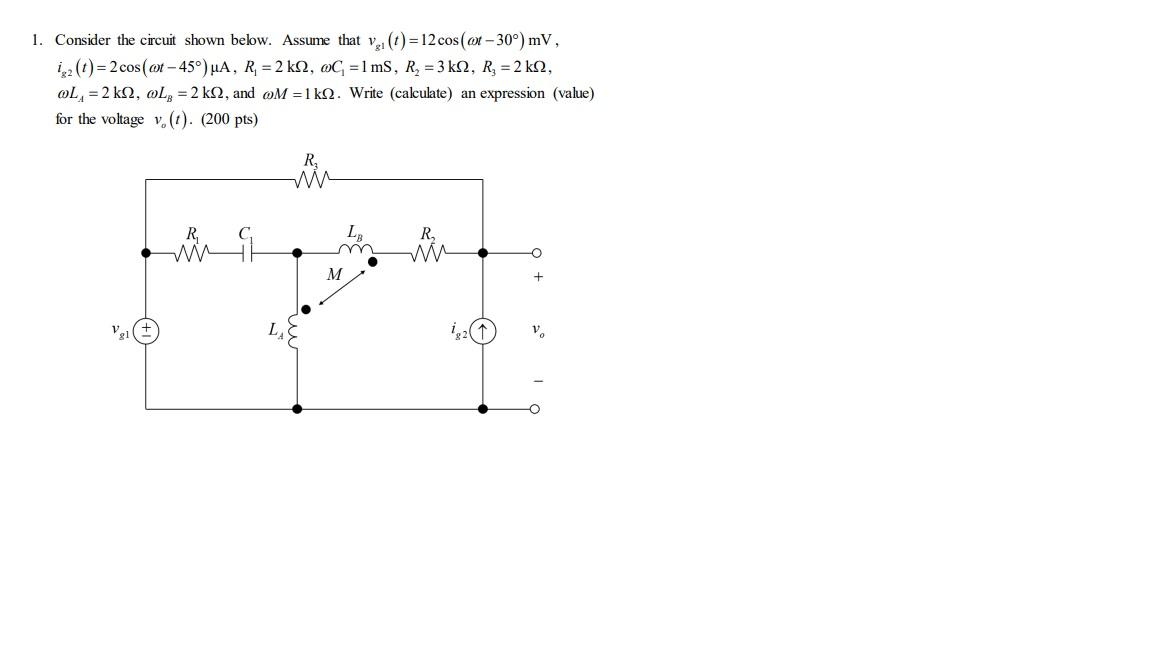

1. Consider the circuit shown below. Assume that v₂₁ (t)=12 cos (@t-30°) mV, 2 (t) = 2 cos (at-45°) μA, R₁ = 2 k2, C = 1 mS, R₂ = 3 k2, R₂ = 2 kn, @L₁ = 2 kn, wLg = 2 k2, and for the voltage v. (t). (200 pts) M=1kQ. Write (calculate) an expression (value) R₂ ww wir + ܕܓ܀ M
