- 1 Consider The Circuit Shown Below R R Ww N N Assume That V T 100 Cos At 30 Mv R 1kq C 1ms R 1 (25.42 KiB) Viewed 39 times
1. Consider the circuit shown below. R₂ R₁ ww N₁ : N₂ Assume that v; (t) = 100 cos (at +30°) mV, R₁ = 1kQ, @C₁ = 1mS, R₂
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. Consider the circuit shown below. R₂ R₁ ww N₁ : N₂ Assume that v; (t) = 100 cos (at +30°) mV, R₁ = 1kQ, @C₁ = 1mS, R₂

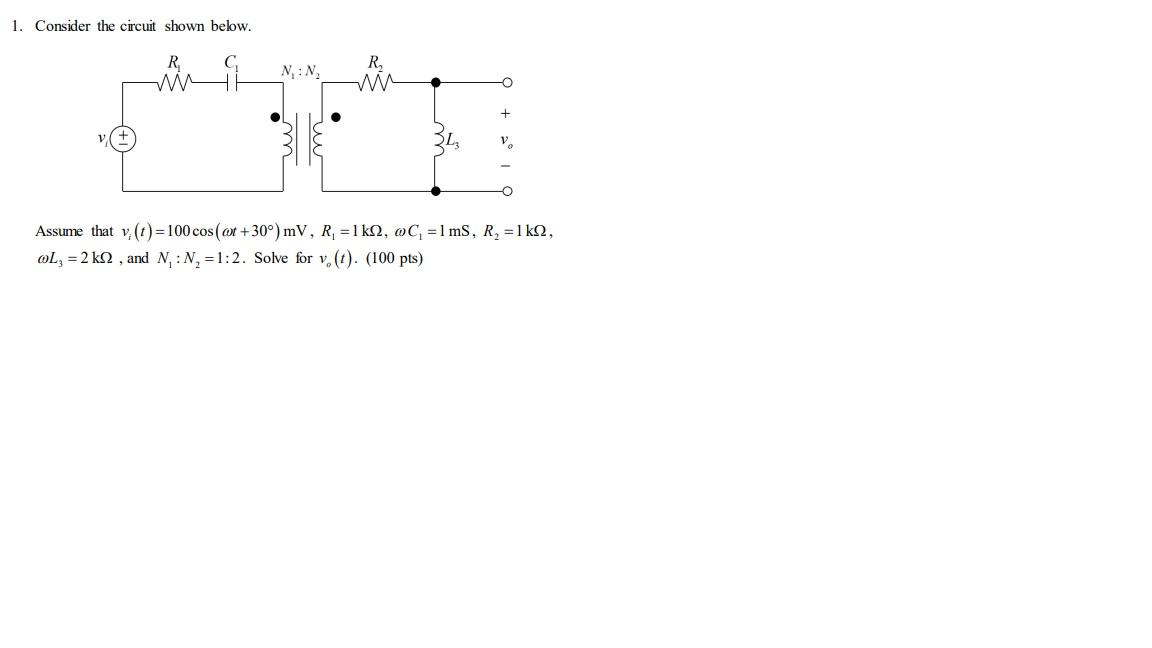

1. Consider the circuit shown below. R₂ R₁ ww N₁ : N₂ Assume that v; (t) = 100 cos (at +30°) mV, R₁ = 1kQ, @C₁ = 1mS, R₂ = 1kQ, L3 = 2 kn, and N₁ : N₂ = 1:2. Solve for v (t). (100 pts)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
