PART 2: Circuit Analysis (58 points total) The resulting matrix below is for a voltage source/resistive network: 40volts

Post by answerhappygod »

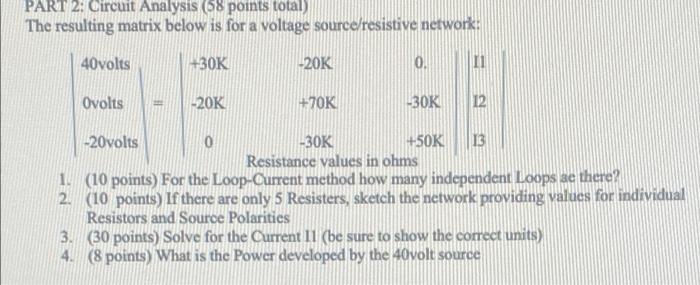

Part 2 Circuit Analysis 58 Points Total The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 1
Part 2 Circuit Analysis 58 Points Total The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 1 (38.68 KiB) Viewed 28 times
PART 2: Circuit Analysis (58 points total) The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. Ovolts = -20K +70K -30K 12 -20volts 0 -30K +50K 13 Resistance values in ohms 1. (10 points) For the Loop-Current method how many independent Loops ae there? 2. (10 points) If there are only 5 Resisters, sketch the network providing values for individual Resistors and Source Polarities 3. (30 points) Solve for the Current 11 (be sure to show the correct units) 4. (8 points) What is the Power developed by the 40volt source
