- Given Gcs 5 1 25 1 45 1 0 25 S Draw The Bode Plot Fill Out The Missing Values And Slope Resultant Slope Starti 1 (79.81 KiB) Viewed 19 times
show clear solution. will upvote if clear and complete. thank
you!

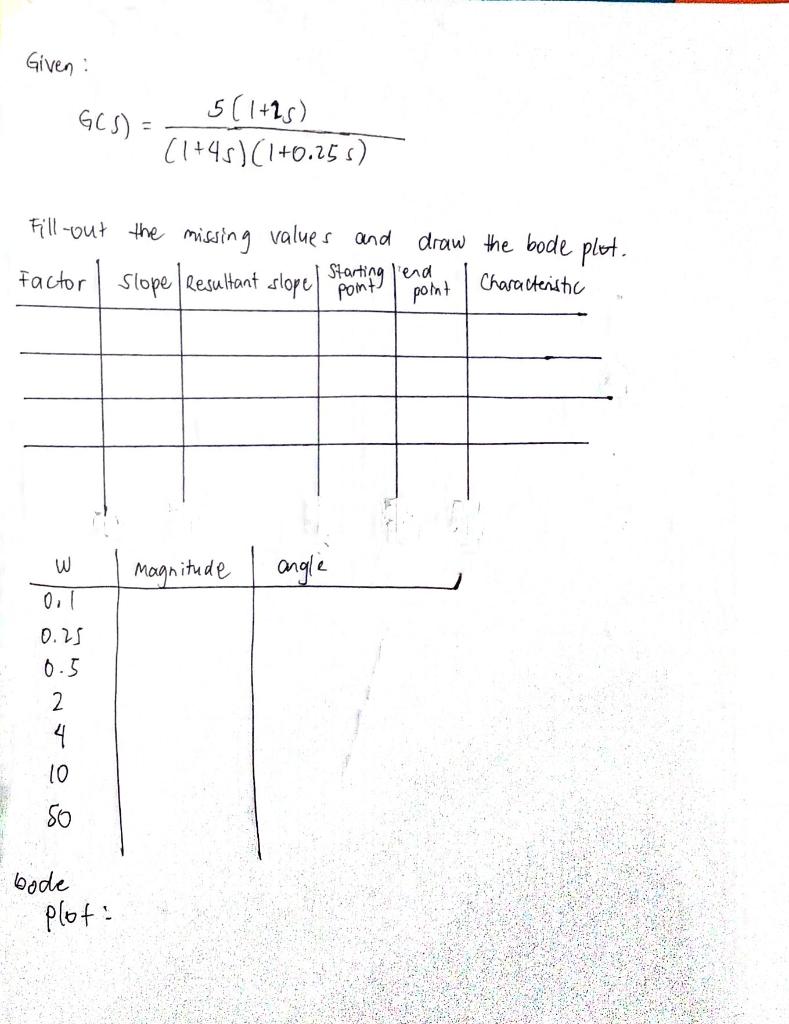

Given: GCS). = 5(1+25) (1+45)(1+0.25 s) draw the bode plot. Fill-out the missing values and Slope Resultant slope Starting lend Factor Characteristic point W 0.1 Magnitude angle 0.25 0.5 2 4 10 50 bode Plot:
