11. (5 pts.) The figure below illustrates Tank#2 level of a coupled-tanks system responds to a step input from 4 inches

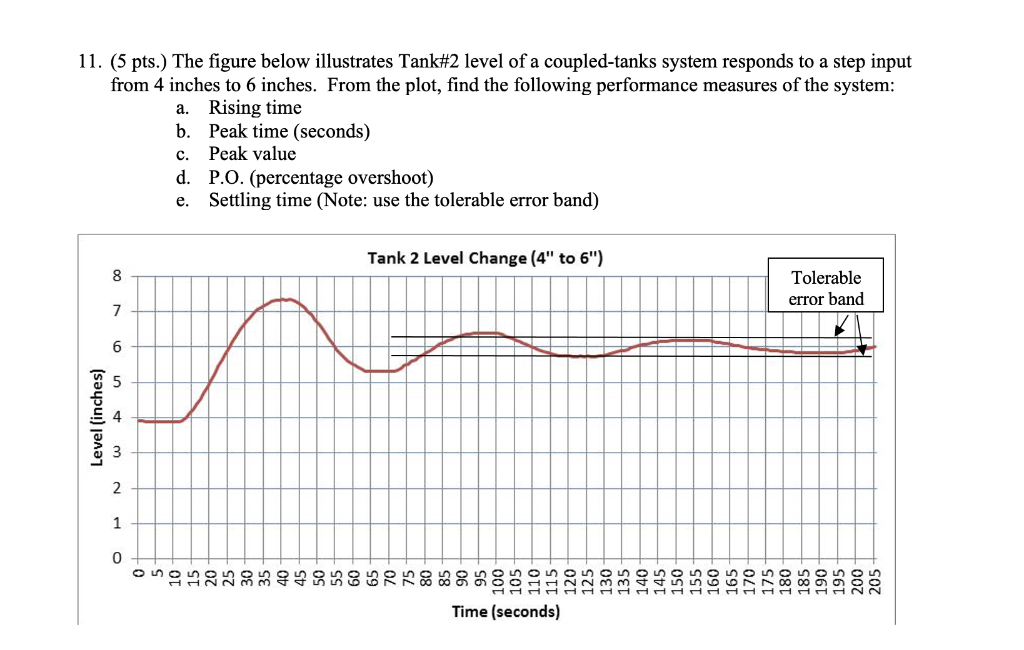

11. (5 pts.) The figure below illustrates Tank#2 level of a coupled-tanks system responds to a step input from 4 inches to 6 inches. From the plot, find the following performance measures of the system: a. Rising time b. Peak time (seconds) C. Peak value d. P.O. (percentage overshoot) e. Settling time (Note: use the tolerable error band) Tank 2 Level Change (4" to 6") Tolerable error band Level (inches) 8 7 6 2 1 0 0 OOT SOT 110 115 120 Time (seconds) S71 130 OCT 135 140 † 145+ LOST 155+ 160 + 165+ 170 + 175 081 581 061 195 007 205
