(3) A 3-phase 10-pole 600-rpm star-connected alternator has 12 slots per pole with 8 conductors per slot, the conductors

Post by answerhappygod »

3 A 3 Phase 10 Pole 600 Rpm Star Connected Alternator Has 12 Slots Per Pole With 8 Conductors Per Slot The Conductors 1
3 A 3 Phase 10 Pole 600 Rpm Star Connected Alternator Has 12 Slots Per Pole With 8 Conductors Per Slot The Conductors 1 (42.6 KiB) Viewed 20 times

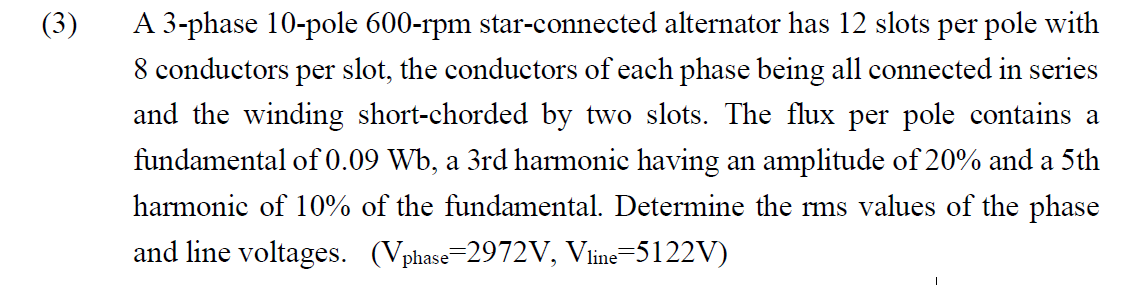

(3) A 3-phase 10-pole 600-rpm star-connected alternator has 12 slots per pole with 8 conductors per slot, the conductors of each phase being all connected in series and the winding short-chorded by two slots. The flux per pole contains a fundamental of 0.09 Wb, a 3rd harmonic having an amplitude of 20% and a 5th harmonic of 10% of the fundamental. Determine the rms values of the phase and line voltages. (Vphase=2972V, Vline-5122V)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
