3. (20 pts) (Show your work) For the circuit shown below, the switch has been in position A for a long time and is moved
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. (20 pts) (Show your work) For the circuit shown below, the switch has been in position A for a long time and is moved

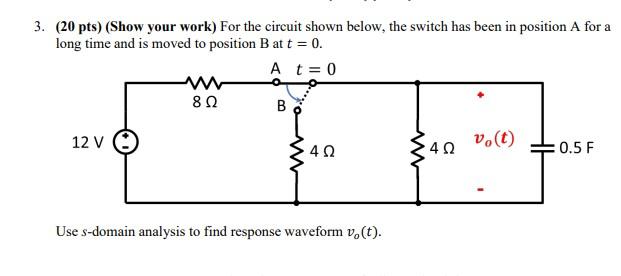

3. (20 pts) (Show your work) For the circuit shown below, the switch has been in position A for a long time and is moved to position B at t = 0. A t = 0 M 802 B 12 V vo(t) 4 Ω 4 Ω : 0.5 F - Use s-doma analysis to find response waveform vo(t).
