(2) Determine the distributed and pitch factors for a 3-phase winding with 2 slots per pole per phase. The coil-span is

Post by answerhappygod »

2 Determine The Distributed And Pitch Factors For A 3 Phase Winding With 2 Slots Per Pole Per Phase The Coil Span Is 1
2 Determine The Distributed And Pitch Factors For A 3 Phase Winding With 2 Slots Per Pole Per Phase The Coil Span Is 1 (35.76 KiB) Viewed 42 times

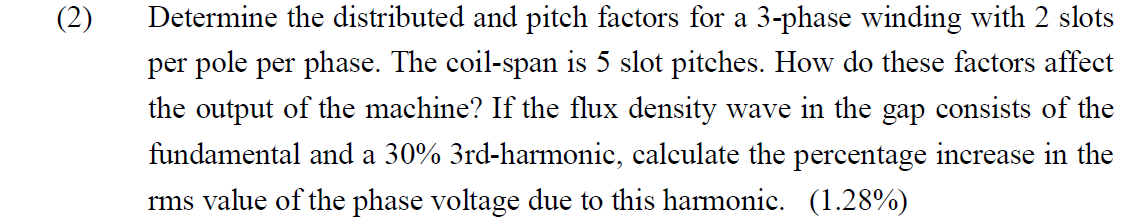

(2) Determine the distributed and pitch factors for a 3-phase winding with 2 slots per pole per phase. The coil-span is 5 slot pitches. How do these factors affect the output of the machine? If the flux density wave in the gap consists of the fundamental and a 30% 3rd-harmonic, calculate the percentage increase in the rms value of the phase voltage due to this harmonic. (1.28%)
