2. For the emitter bias circuit shown in the following figure, find IE, Ic, Vc and Vc and VCE for B=85 and VBE = 0.7V. +
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. For the emitter bias circuit shown in the following figure, find IE, Ic, Vc and Vc and VCE for B=85 and VBE = 0.7V. +

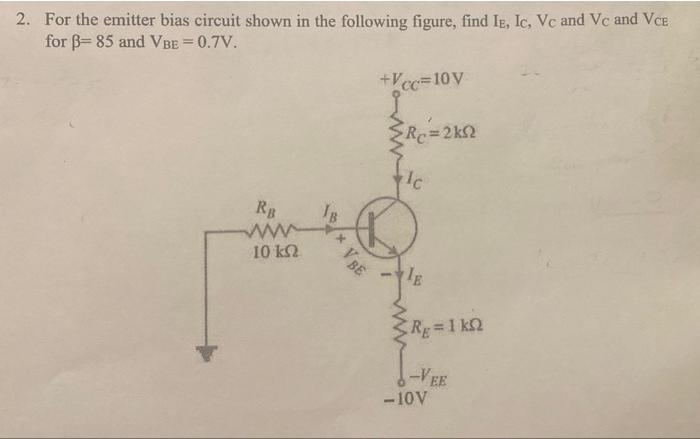

2. For the emitter bias circuit shown in the following figure, find IE, Ic, Vc and Vc and VCE for B=85 and VBE = 0.7V. +Vcc=10V RB 10 ΚΩ x V BE Rc=2k2 lc lE Rg=1 kn -VE -10V
