Obtain the root-locus for K>0, a system whose open-loop transfer function is KG(s)H(s): K(s+ 2)(s + 3) s(s+ 1)(s + 5) (s

Post by answerhappygod »

Obtain The Root Locus For K 0 A System Whose Open Loop Transfer Function Is Kg S H S K S 2 S 3 S S 1 S 5 S 1
Obtain The Root Locus For K 0 A System Whose Open Loop Transfer Function Is Kg S H S K S 2 S 3 S S 1 S 5 S 1 (23.08 KiB) Viewed 28 times

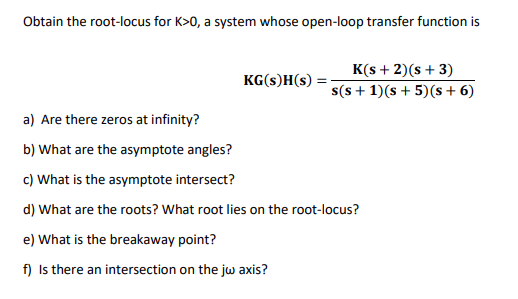

Obtain the root-locus for K>0, a system whose open-loop transfer function is KG(s)H(s): K(s+ 2)(s + 3) s(s+ 1)(s + 5) (s + 6) a) Are there zeros at infinity? b) What are the asymptote angles? c) What is the asymptote intersect? d) What are the roots? What root lies on the root-locus? e) What is the breakaway point? f) Is there an intersection on the jw axis?
