Question 4 (14 pts.): a. (14 pts.) Given the sequential logic circuit below, complete the timing waveforms for the outpu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 4 (14 pts.): a. (14 pts.) Given the sequential logic circuit below, complete the timing waveforms for the outpu

Post by answerhappygod »

Question 4 14 Pts A 14 Pts Given The Sequential Logic Circuit Below Complete The Timing Waveforms For The Outpu 1
Question 4 14 Pts A 14 Pts Given The Sequential Logic Circuit Below Complete The Timing Waveforms For The Outpu 1 (39.07 KiB) Viewed 173 times

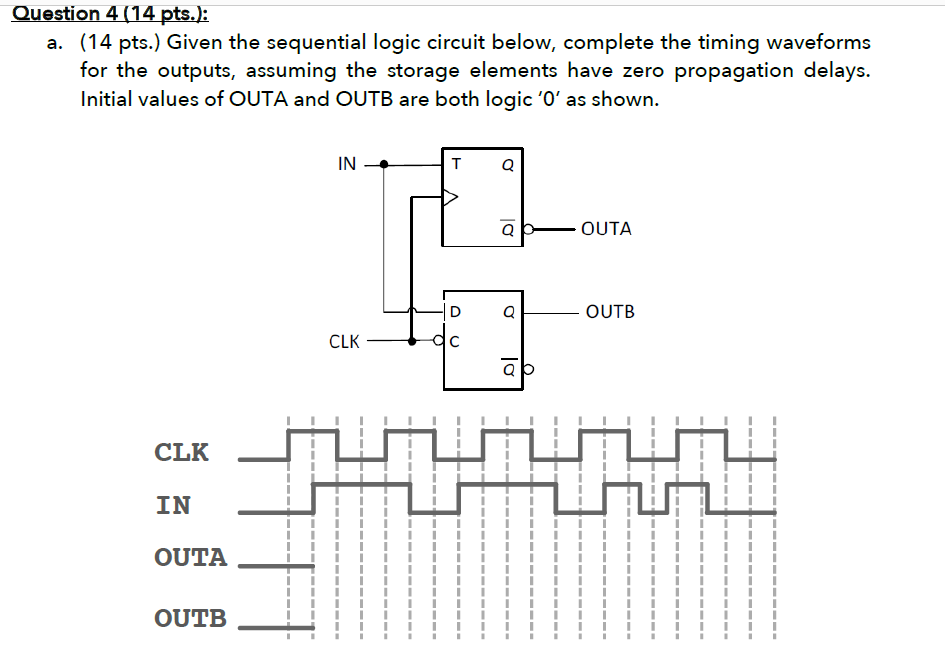

Question 4 (14 pts.): a. (14 pts.) Given the sequential logic circuit below, complete the timing waveforms for the outputs, assuming the storage elements have zero propagation delays. Initial values of OUTA and OUTB are both logic 'O' as shown. IN T Q Q OUTA Q OUTB CLK Q CLK TH IN OUTA OUTB D U
