The circuit in Figure 3.1 is designed such that the 50 Hz current source delivers maximum power to the load modeled by t

Post by answerhappygod »

The Circuit In Figure 3 1 Is Designed Such That The 50 Hz Current Source Delivers Maximum Power To The Load Modeled By T 1
The Circuit In Figure 3 1 Is Designed Such That The 50 Hz Current Source Delivers Maximum Power To The Load Modeled By T 1 (28.56 KiB) Viewed 35 times

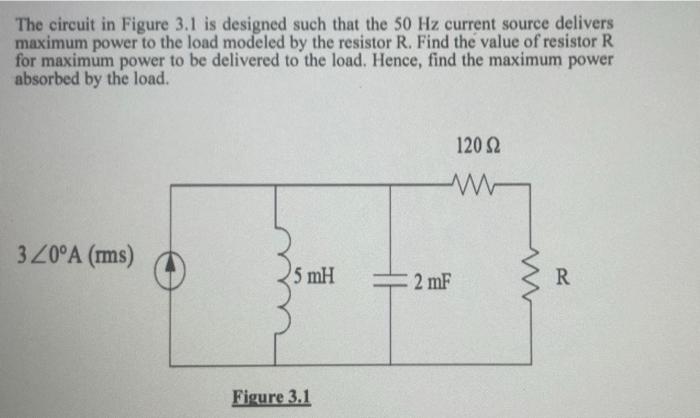

The circuit in Figure 3.1 is designed such that the 50 Hz current source delivers maximum power to the load modeled by the resistor R. Find the value of resistor R for maximum power to be delivered to the load. Hence, find the maximum power absorbed by the load. 120 Ω www 320°A (ms) 5 mH Figure 3.1 2 mF R
