15.3 The initial voltage across the capacitor in the circuit shown in Figure P15.3 is v(0) = 1 V, and the initial curren

Post by answerhappygod »

15 3 The Initial Voltage Across The Capacitor In The Circuit Shown In Figure P15 3 Is V 0 1 V And The Initial Curren 1
15 3 The Initial Voltage Across The Capacitor In The Circuit Shown In Figure P15 3 Is V 0 1 V And The Initial Curren 1 (39.29 KiB) Viewed 35 times

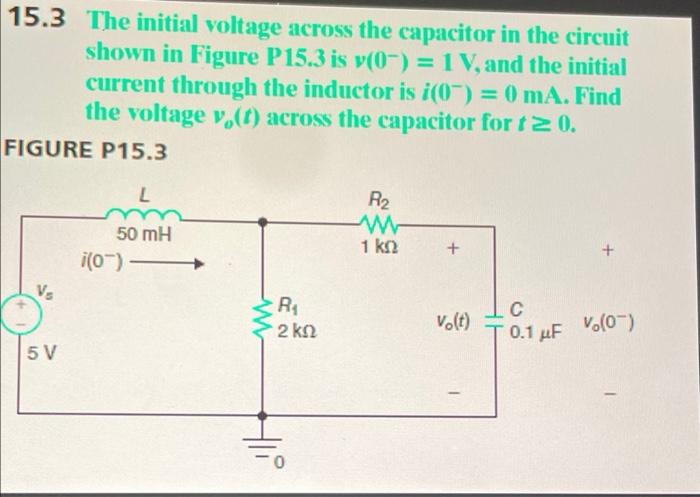

15.3 The initial voltage across the capacitor in the circuit shown in Figure P15.3 is v(0) = 1 V, and the initial current through the inductor is i(0) = 0 mA. Find the voltage v,(t) across the capacitor for t≥ 0. FIGURE P15.3 L R₂ 50 mH i(0) - 1 ΚΩ + R₂₁ C vo(t) 2 ΚΩ 0.1 μF (0) 5 V
