For the network below, find the source current Is

Post by answerhappygod »

For the network below, find the source current Is
For The Network Below Find The Source Current Is 1
For The Network Below Find The Source Current Is 1 (52.94 KiB) Viewed 33 times

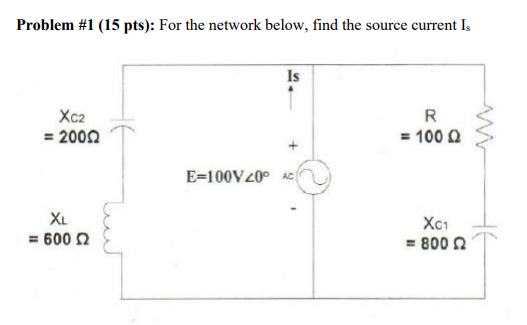

Problem #1 (15 pts): For the network below, find the source current Is Is Xc2 = 20002 R = 100 Ω E=100V200 AC XC1 = 800 Ω XL = 600 2
