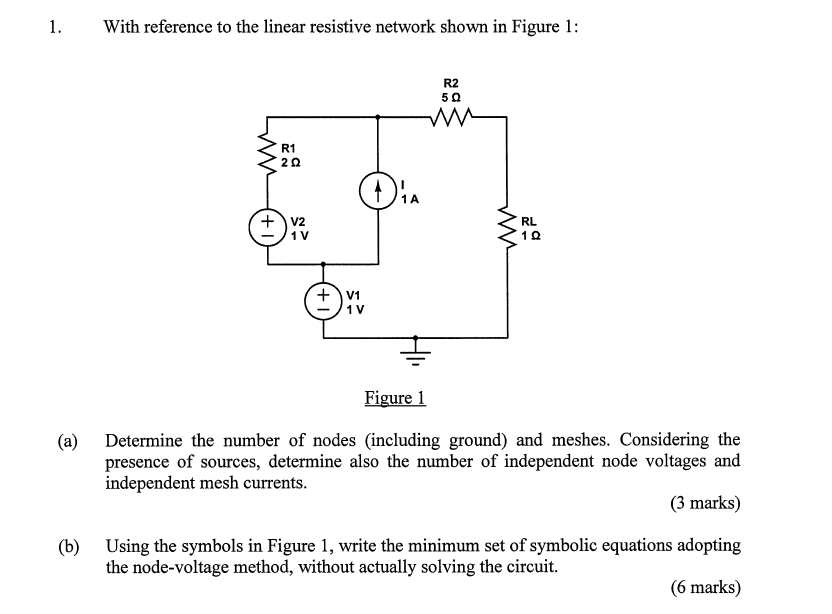

1. With reference to the linear resistive network shown in Figure 1: R2 50 mw R1 202 O: Figure 1 (a) Determine the number of nodes (including ground) and meshes. Considering the presence of sources, determine also the number of independent node voltages and independent mesh currents. (3 marks) (b) Using the symbols in Figure 1, write the minimum set of symbolic equations adopting the node-voltage method, without actually solving the circuit. (6 marks) V2 1 V + V1 1 V ww RL 10
(c) Using the symbols in Figure 1, write the minimum set of symbolic equations adopting the mesh-current method, without actually solving the circuit. [Hint: you may analyse the supermesh corresponding to the outer loop in the network]. (6 marks) (d) By solving the set of equations derived in (b), determine the voltage at each node using the numerical values shown in Figure 1. (4 marks) (e) Using the numerical values provided in Figure 1, determine the equivalent Norton and Thevenin circuits as seen by RL. (6 marks)
