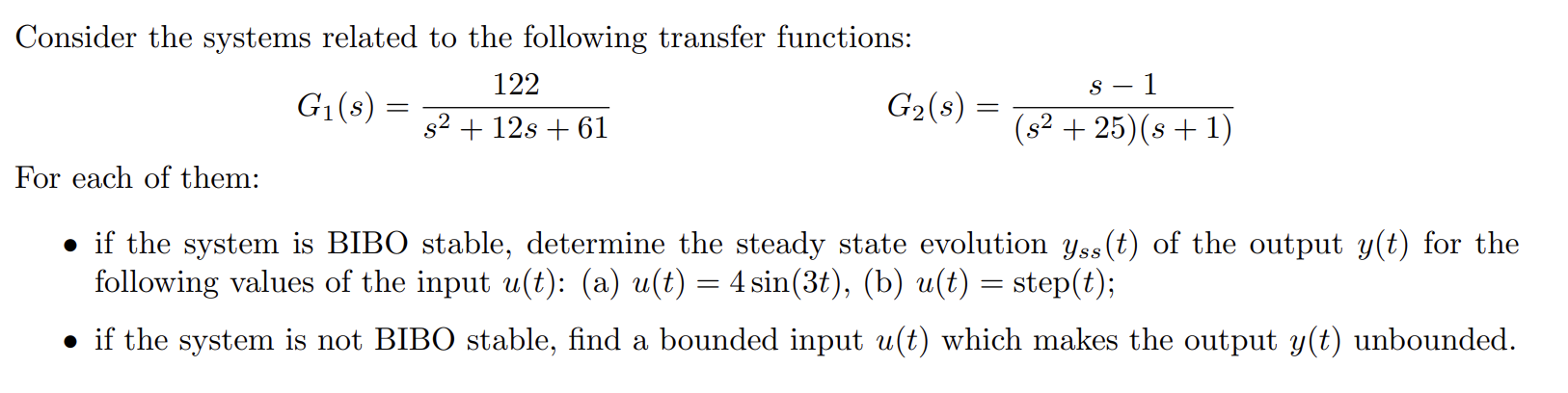

Consider the systems related to the following transfer functions: 122 S 1 G₁(s) G₂ (s) s² + 12s +61 (s² +25)(s + 1) For
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider the systems related to the following transfer functions: 122 S 1 G₁(s) G₂ (s) s² + 12s +61 (s² +25)(s + 1) For
Consider the systems related to the following transfer functions: 122 S 1 G₁(s) G₂ (s) s² + 12s +61 (s² +25)(s + 1) For each of them: if the system is BIBO stable, determine the steady state evolution yss (t) of the output y(t) for the following values of the input u(t): (a) u(t) = 4 sin(3t), (b) u(t) = step(t); • if the system is not BIBO stable, find a bounded input u(t) which makes the output y(t) unbounded.
