Question A Derive The Resonant Frequency Formula For R Lc Series Circuit 4 Marks B Given The Circuit Below Of Fig 1 (58.75 KiB) Viewed 30 times
Please write cleary and were possible include circuit diagrams,
I will upvote

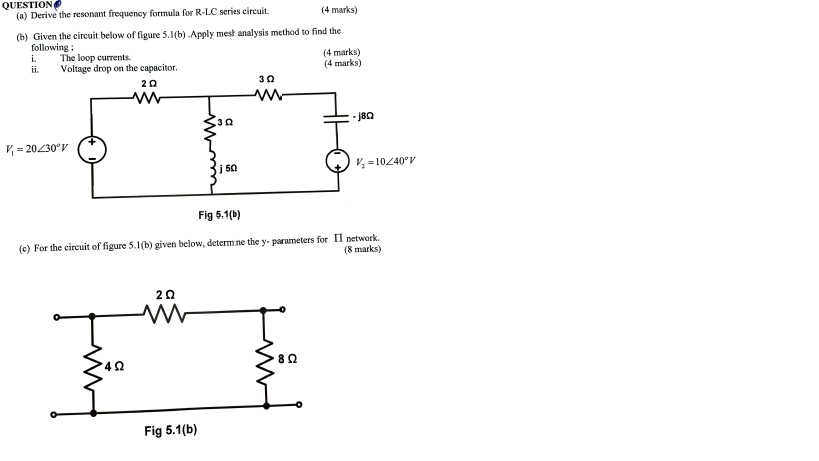

QUESTION (a) Derive the resonant frequency formula for R-LC series circuit. (4 marks) (b) Given the circuit below of figure 5.1(b) Apply mest analysis method to find the following: i. The loop currents. (4 marks) ii. Voltage drop on the capacitor. (4 marks) 202 302 ww www 302 V₁=20/30°V j 50 Fig 6.1(b) (c) For the circuit of figure 5.1(b) given below, determine the y- parameters for II network. (8 marks) 202 www '8 Ω Fig 5.1(b) fünf 402 -J8Q2 V₂ =10240°V
