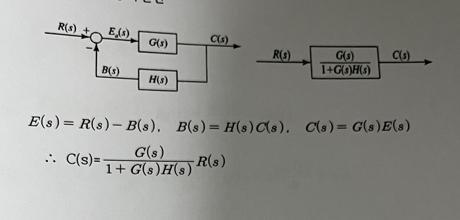

- R S E S C S G S C S R 3 G S 1 G S H S B S H S E S R S B S B S H S C S C S G S E S C S 1 (117.37 KiB) Viewed 37 times
G(s) = K / s(s+5), H(s) =1
1. If k = 25, solve the %OS, Tp, Ts.
2. Solve the K,Tp, Ts. (%OS = 10)
R(s) + E(s) C(s) G(s) C(s) R(3) G(s) 1+G(s)H(s) B(s) H(s) E(s) = R(s)- B(s). B(s) = H(s) C(s). C(s) = G(s)E(s) .. C(s)=- G(s) 1+ G(s)H(s) R(s)
